FUSE 5x20 C/CODE M 6A/125V (P)
Description
AI

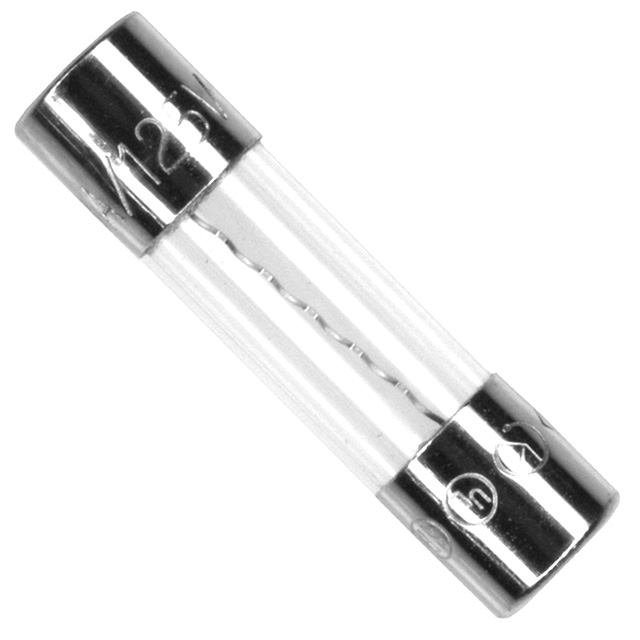

5x20mm medium- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5x20 C/CODE M 6A/125V (P)
FUSE 5x20 C/CODE M 6A/125V (P)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Mounting Type | Package / Case [x] | Package / Case [y] | Current Rating (Amps) | Melting I²t | Approval Agency | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Fuse Type | Package / Case | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -55 C | 125 °C | 125 V | Requires Holder | 5 mm | 20 mm | 6 A | 131.455 I²t | CE CSA KC PSE UL | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Medium Blow | Cartridge Glass | ||
LITTELFUSE | -55 C | 125 °C | 125 V | Requires Holder | 5 mm | 20 mm | 6 A | 131.455 I²t | CE CSA KC PSE UL | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Medium Blow | Cartridge Glass | ||
LITTELFUSE | -55 C | 125 °C | 125 V | Through Hole | 5 mm | 20 mm | 6 A | 131.455 I²t | CE CSA KC PSE UL | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | Medium Blow | Cartridge Glass | Axial | |
 LITTELFUSE | -55 C | 125 °C | 125 V | Requires Holder | 5 mm | 20 mm | 6 A | 131.455 I²t | CE CSA KC PSE UL | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Medium Blow | Cartridge Glass | 0.0179 Ohms |
