MAX6423 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC SUPERVISOR 1 CHANNEL SC70-4

Part	Package / Case	Supplier Device Package	Mounting Type	Reset Timeout	Type	Voltage - Threshold	Reset	Number of Voltages Monitored	Output	Operating Temperature [Min]	Operating Temperature [Max]
Analog Devices Inc./Maxim Integrated MAX6423XS22	SC-82A SOT-343	SC-70-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.188 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423XS31	SC-82A SOT-343	SC-70-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	3.075 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423US26+T	TO-253-4 TO-253AA	SOT-143-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.625 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423US23+T	TO-253-4 TO-253AA	SOT-143-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.313 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423XS22+T	SC-82A SOT-343	SC-70-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.188 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C

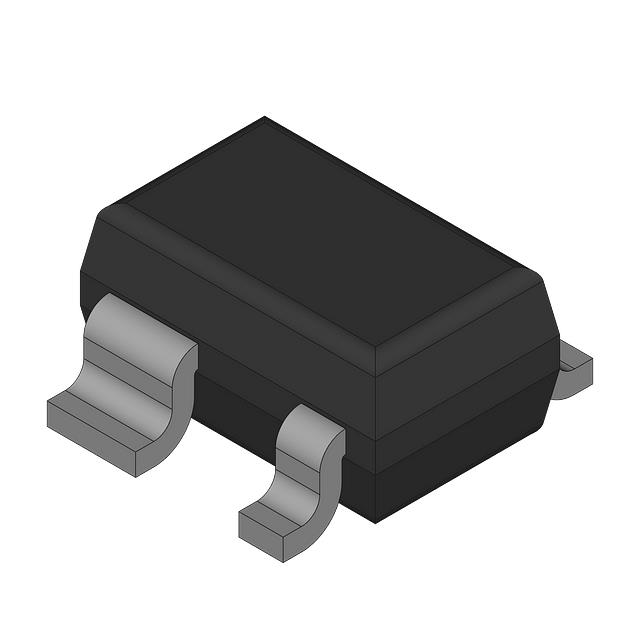

Analog Devices Inc./Maxim Integrated MAX6423XS23+T	SC-82A SOT-343	SC-70-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.313 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423US22+T	TO-253-4 TO-253AA	SOT-143-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.188 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423XS16+T	SC-82A SOT-343	SC-70-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	1.575 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423US22	TO-253-4 TO-253AA	SOT-23-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.188 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX6423US23	TO-253-4 TO-253AA	SOT-23-4	Surface Mount	Adjustable/Selectable	Simple Reset/Power-On Reset	2.313 V	Active Low	1	Open Drain or Open Collector	-40 °C	125 °C
