794448 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

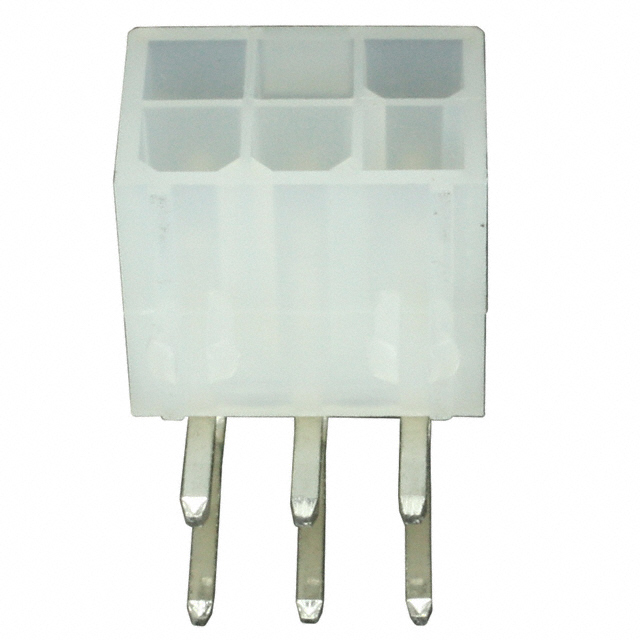

CONN HEADER R/A 6POS 4.2MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Insulation Height | Insulation Height | Shrouding | Number of Positions Loaded | Insulation Material | Contact Finish - Post | Contact Material | Features | Number of Rows [custom] | Connector Type | Mounting Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Style | Contact Shape | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Fastening Type | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 150 Áin | 3.81 Ám | Solder | 10 mm | 0.394 " | Shrouded - 4 Wall | All | Nylon Polyamide (PA) | Tin | Copper Alloy | Board Lock | 2 | Header | Right Angle Through Hole | UL94 V-2 | 0.165 in | 4.2 mm | Board to Board Cable | Square | 6 | 0.165 in | 4.2 mm | -55 C | 105 ░C | 600 VAC | Locking Ramp | 0.138 in | 3.5 mm | Natural | Male Pin | |
 TE Connectivity AMP Connectors | 150 Áin | 3.81 Ám | Solder | 10 mm | 0.394 " | Shrouded - 4 Wall | All | Nylon Polyamide (PA) | Tin-Lead | Copper Alloy | Board Lock | 2 | Header | Right Angle Through Hole | UL94 V-2 | 0.165 in | 4.2 mm | Board to Board Cable | Square | 6 | 0.165 in | 4.2 mm | -55 C | 105 ░C | 600 VAC | Locking Ramp | 0.138 in | 3.5 mm | Natural | Male Pin | Tin-Lead |
