PRPC011 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 22POS 2.54MM

Part	Contact Finish Thickness - Post	Material Flammability Rating	Contact Type	Contact Finish - Mating	Style	Insulation Material	Connector Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Termination	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Shrouding	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Rows	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PRPC011DFAN-RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C	2	0.1 in	2.54 mm	3 A	Black	8.08 mm	0.318 in	0.098 "	2.5 mm	Solder	Square	13.63 mm	0.537 in	Gold	Unshrouded	Flash	22	Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull
Sullins Connector Solutions PRPC011SFAN-RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	8.08 mm	0.318 in	0.098 "	2.5 mm	Solder	Square	13.63 mm	0.537 in	Gold	Unshrouded	Flash	11	Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull	1

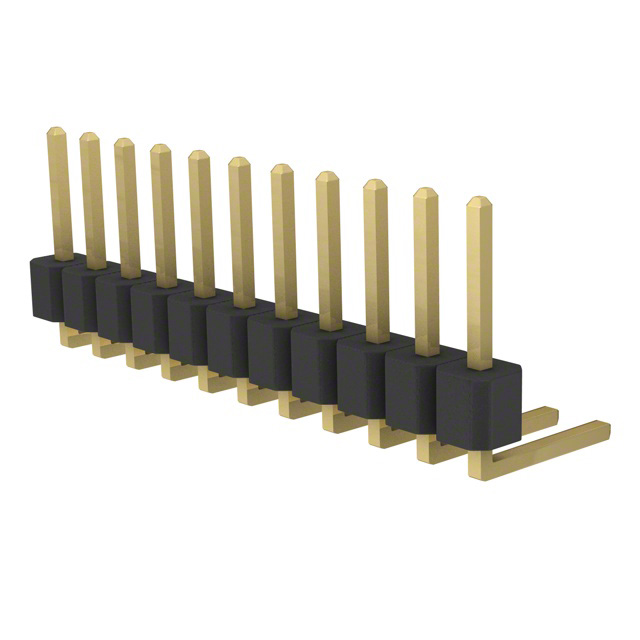

Sullins Connector Solutions PRPC011SBBN-M71RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	11	Right Angle Through Hole	Brass	0.1 "	2.54 mm	5.58 mm	0.22 in	Push-Pull	1
Sullins Connector Solutions PRPC011SGAN-M71RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	8.08 mm	0.318 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	11	Right Angle Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull	1

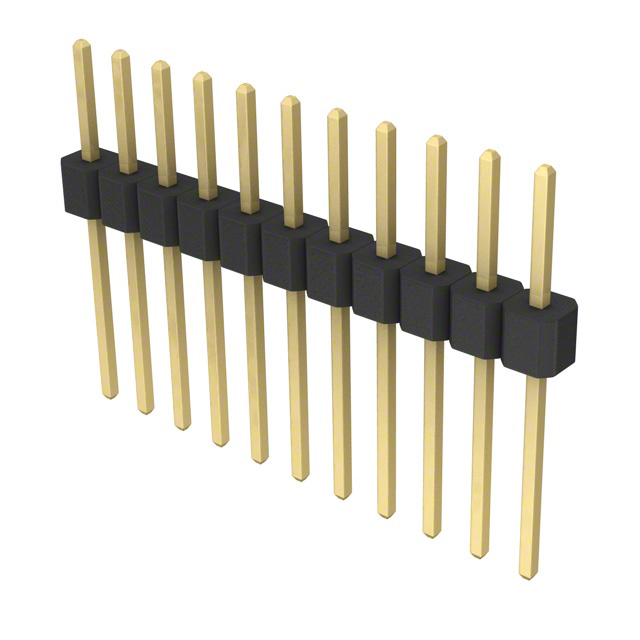

Sullins Connector Solutions PRPC011SADN-RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	11	Through Hole	Brass	0.1 "	2.54 mm	10.67 mm	0.42 in	Push-Pull	1	19.01 mm	0.748 in

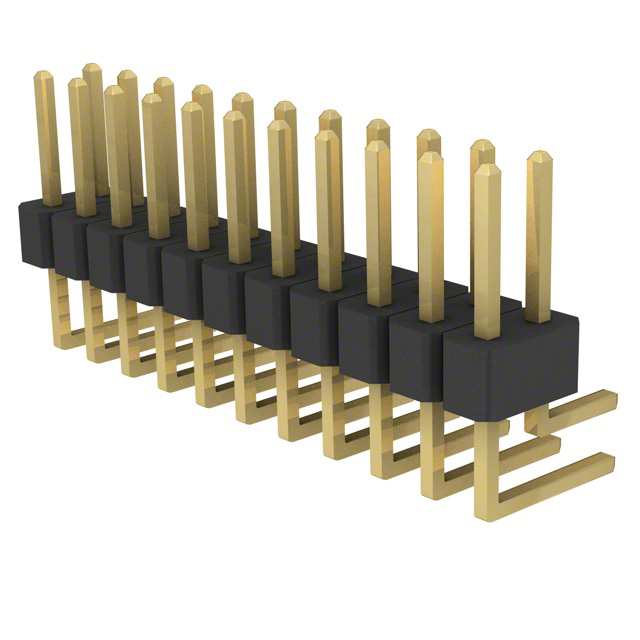

Sullins Connector Solutions PRPC011DBAN-M71RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C	2	0.1 in	2.54 mm	3 A	Black	5.84 mm	0.23 in	0.197 "	5 mm	Solder	Square			Gold	Unshrouded	Flash	22	Right Angle Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull

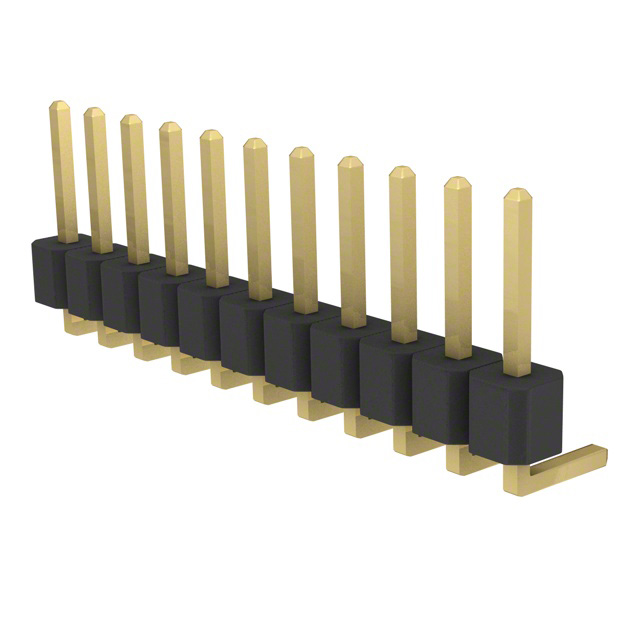

Sullins Connector Solutions PRPC011SBAN-M71RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	11	Right Angle Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull	1
Sullins Connector Solutions PRPC011DAAN-RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C	2	0.1 in	2.54 mm	3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	22	Through Hole	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	Push-Pull		11.39 mm	0.448 in
Sullins Connector Solutions PRPC011SBCN-M71RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C				3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	11	Right Angle Through Hole	Brass	0.1 "	2.54 mm	8.13 mm	0.32 in	Push-Pull	1
Sullins Connector Solutions PRPC011DABN-RC	Flash	UL94 V-0	Male Pin	Gold	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	-40 C	105 ░C	2	0.1 in	2.54 mm	3 A	Black	5.84 mm	0.23 in	0.098 "	2.5 mm	Solder	Square			Gold	Unshrouded	Flash	22	Through Hole	Brass	0.1 "	2.54 mm	5.84 mm	0.23 "	Push-Pull		14.18 mm	0.558 in
