H2170 Series

Catalog

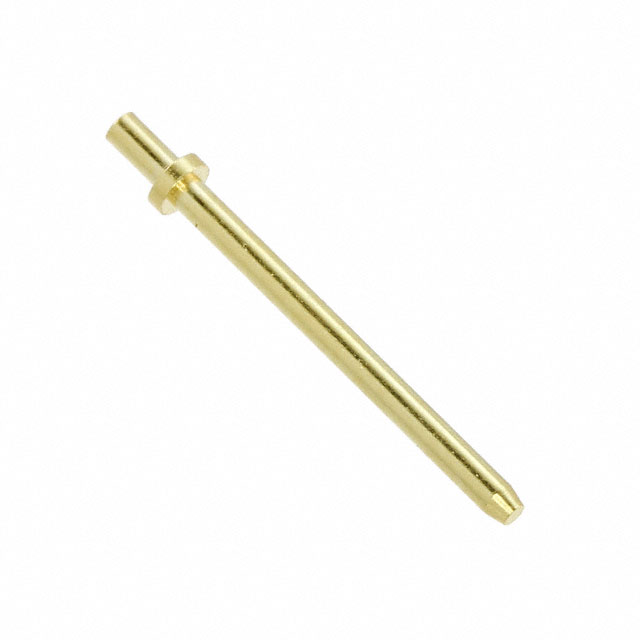

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 1.14 MM, GOLD, 15.29 MM, 2.08 MM

Part	Terminal Type	Board Thickness	Board Thickness	Termination	Contact Finish	Mounting Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Length - Above Flange [x]	Length - Above Flange	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Style	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]
Harwin Inc. H2170-05	PC Pin	0.063 in	1.6 mm	Swage	Gold	Through Hole	0.041 in	1.04 mm	Non-Insulated	1.04 mm	1.14 mm	0.041 in	0.045 in	0.5 in	12.7 mm	Brass	15.29 mm	0.602 in	Single End	1.77 mm	0.07 in	2.08 mm	0.082 "
Harwin Inc. H2170-01	PC Pin	0.063 in	1.6 mm	Swage	Tin	Through Hole	0.041 in	1.04 mm	Non-Insulated	1.04 mm	1.14 mm	0.041 in	0.045 in	0.5 in	12.7 mm	Brass	15.29 mm	0.602 in	Single End	1.77 mm	0.07 in	2.08 mm	0.082 "
