2L28050 Series
Manufacturer: Belden Inc.
Beta
⌘K

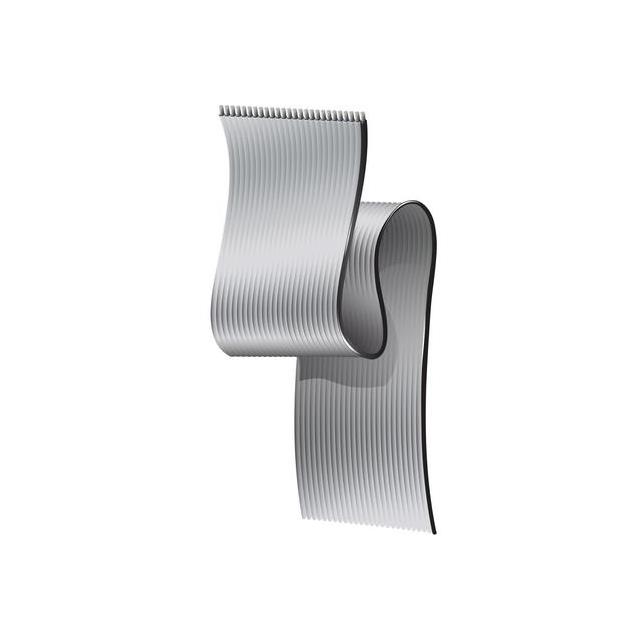

CBL RIBN 50COND 0.039 GRAY
| Part | First Conductor Mark | Insulation Resistance | Conductor Material | Current Rating (Amps) | Number of Conductors | Ratings | Ribbon Width [custom] | Ribbon Width [custom] | Pitch | Pitch | Conductor Strand [custom] | Conductor Strand [custom] | Ribbon Thickness | Ribbon Thickness | Length | Length | Voltage | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Black | 10 GOhm | Copper Tinned | 1 A | 50 | UL Style 2651 | 1.964 in | 49.89 mm | 1 mm | 0.039 in | 36 AWG | 7 Strands | 0.89 mm | 0.035 in | 100 ' | 30.48 m | 300 VDC | 28 AWG | Poly-Vinyl Chloride (PVC) | Gray | Flat Cable | -40 C | 105 ░C | Unshielded |
