2102061 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

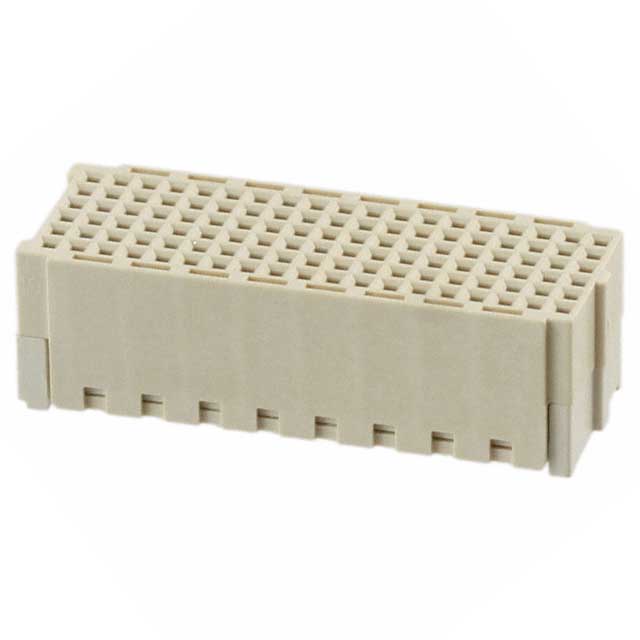

BOARD TO BOARD & MEZZANINE CONNECTORS 114P RCPT LEAD-FREE 12MM .76 GOLD
| Part | Contact Material | Contact Shape | Applications | Insulation Material | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish - Post | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Mated Stacking Heights | Termination | Mounting Type | Features | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Fastening Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Beryllium Copper | Square | General Purpose Military | Liquid Crystal Polymer (LCP) | 1.27 mm | 0.05 in | 250 VAC | Tin | All | 0.76 Ám | 30 Áin | Gold | Receptacle | -55 C | 125 °C | 6 | 114 | 12 mm | Solder | Surface Mount | Pick and Place | Natural | 0.05 in | 1.27 mm | Female Socket | Push-Pull | 8 mm | 0.315 in |
