0FHM0001HXGLO Series

HOLDER - SMALL (MINI) BLADE - 100 pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

HOLDER - SMALL (MINI) BLADE - 100 pc

Part	Termination Style	Voltage	Fuseholder Type	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Mounting Type	Current Rating (Amps)	For Use With/Related Products	Number of Circuits	Fuse Type
Littelfuse/Commercial Vehicle Products 0FHM0001HXGLO	Wire Leads	32 V	Holder	0.433 "	0.152 "	11 mm	3.85 mm	Free Hanging (In-Line)	20 A	Miniature (ATM)	1	Blade

Catalog

HOLDER - SMALL (MINI) BLADE - 100 pc

Key Features

• Compatible with MINI® blade fuses up to 20 amps (sold separately)

• Clear body and cover let you see an installed Smart Glow fuse

• 14 AWG UL-1015 wire with red insulation

Description

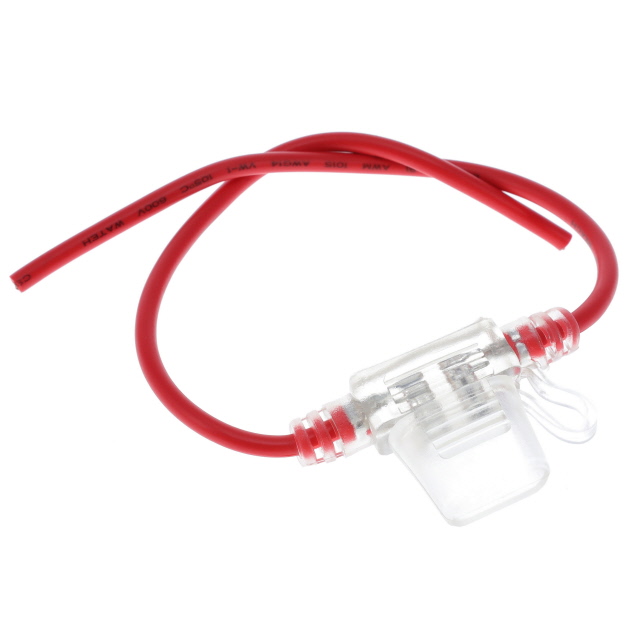

The MINI® FHM Series 32V Smart Glow In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features an integrated cover, which connects with the fuse holder body to form a sealed enclosure that meets IP67 dustproof and waterproof standards. This configuration of the MINI® FHM Series fuse holder (0FHM0001HXGLO) features a clear body and cover so you can easily view whether the installed Smart Glow fuse (sold separately) is blown. The 14 AWG UL-1015 wire leads with red insulation make in-line installation simple.
