2SJ681 Series

Catalog

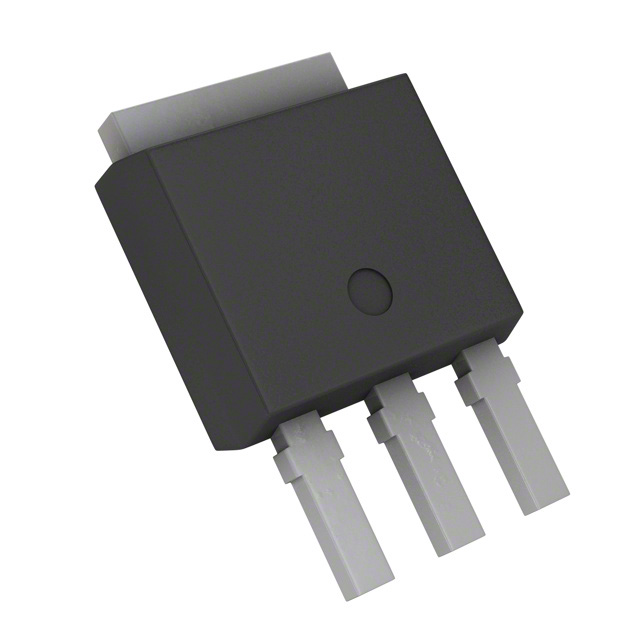

MOSFET P-CH 60V 5A PW-MOLD2

Part	FET Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Package / Case	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Operating Temperature	Vgs(th) (Max) @ Id	Vgs (Max)
Toshiba Semiconductor and Storage 2SJ681(Q)	P-Channel	60 V	700 pF	MOSFET (Metal Oxide)	TO-251-3 Stub Leads IPAK	PW-MOLD2	15 nC	20 W	Through Hole	5 A	170 mOhm	4 V	10 V	150 °C	2 V	20 V
