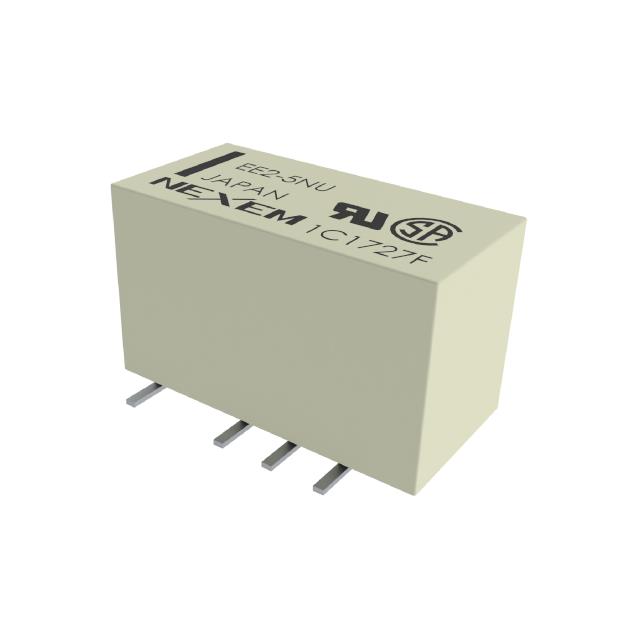

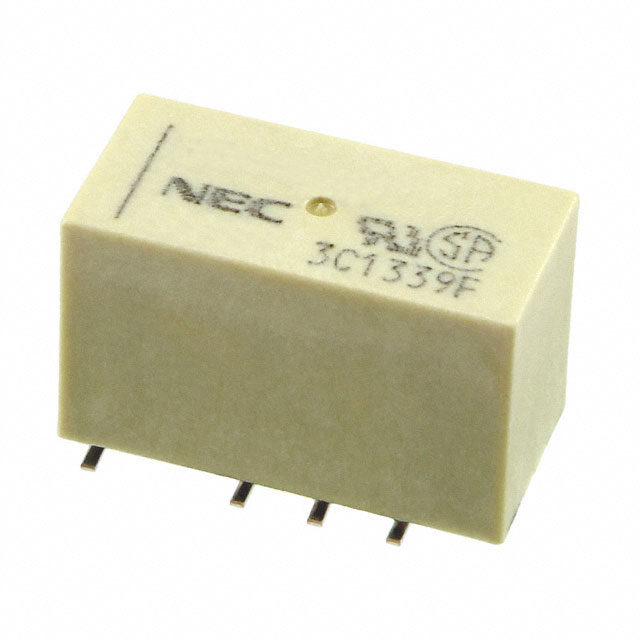

EE2-3S Series

Manufacturer: KEMET

Catalog

RELAY GENERAL PURPOSE DPDT 2A 3V

Part	Coil Resistance	Release Time	Relay Type	Load - Max Switching	Operate Time	Mounting Type	Contact Form	Contact Material	Coil Current	Termination Style	Contact Rating (Current)	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Switching Voltage [Max]
KEMET EE2-3SNU-L	90 Ohms	1 ms	General Purpose	440 W 500 VA	2 ms	Surface Mount	DPDT (2 Form C)	Gold Alloy Silver Alloy	33.3 mA	Gull Wing	2 A	2.25 VDC	85 °C	-40 C	Latching Single Coil	CSA TUV UL	220 VDC 250 VAC
KEMET EE2-3SNUH-L	90 Ohms	1 ms	General Purpose	440 W 500 VA	2 ms	Surface Mount	DPDT (2 Form C)	Gold Alloy Silver Alloy	33.3 mA	Gull Wing	2 A	2.25 VDC	85 °C	-40 C	Latching Single Coil	CSA TUV UL	220 VDC 250 VAC
KEMET EE2-3SNU	90 Ohms	1 ms	General Purpose	440 W 500 VA	2 ms	Surface Mount	DPDT (2 Form C)	Gold Alloy Silver Alloy	33.3 mA	Gull Wing	2 A	2.25 VDC	85 °C	-40 C	Latching Single Coil	CSA TUV UL	220 VDC 250 VAC
KEMET EE2-3SNUX	90 Ohms	1 ms	General Purpose	440 W 500 VA	2 ms	Surface Mount	DPDT (2 Form C)	Gold Alloy Silver Alloy	33.3 mA	Gull Wing	2 A	2.25 VDC	85 °C	-40 C	Latching Single Coil	CSA TUV UL	220 VDC 250 VAC
