CS11027 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Operating Force	Circuit	Illumination	Switch Function	Outline [x]	Outline [y]	Termination Style	Actuator Type	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Orientation	Actuator Height off PCB, Vertical
CIT Relay and Switch CS11027.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	160 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	Gull Wing	Standard	7 mm	Surface Mount	Top Actuated

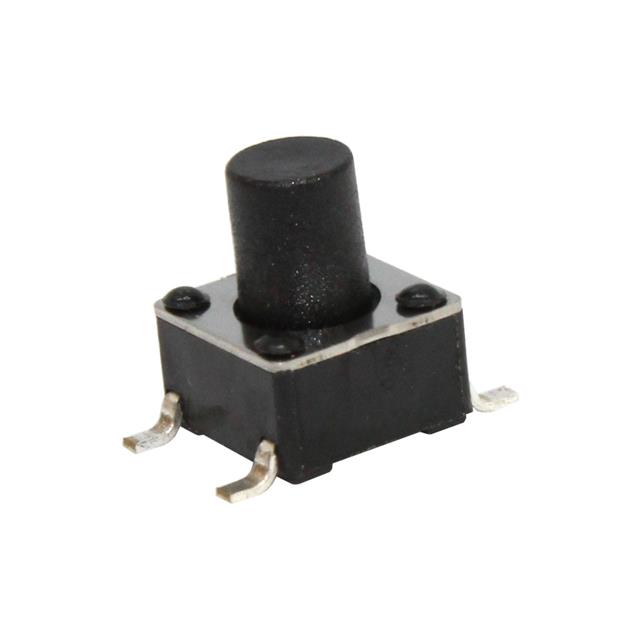

CIT Relay and Switch CS11027.5F260	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	260 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	Gull Wing	Plunger for Cap		Surface Mount	Top Actuated	7.5 mm

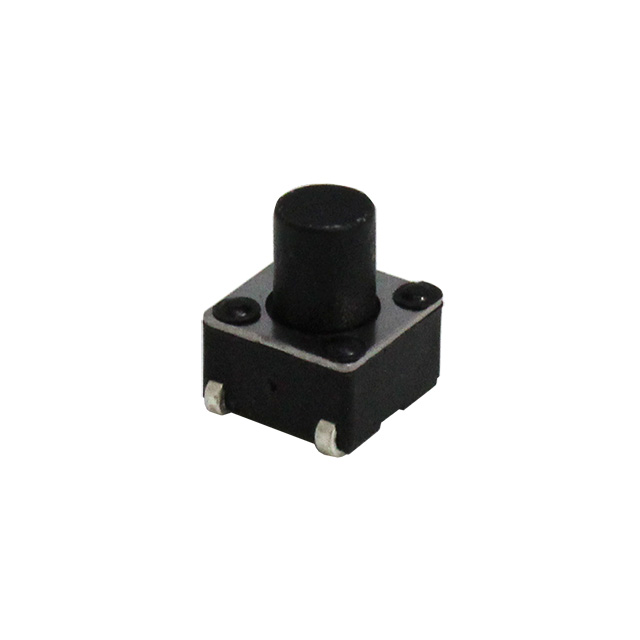

CIT Relay and Switch CS11027.5F260J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	260 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap		Surface Mount	Top Actuated	7.5 mm
CIT Relay and Switch CS11027.5F160J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	160 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap		Surface Mount	Top Actuated	7.5 mm

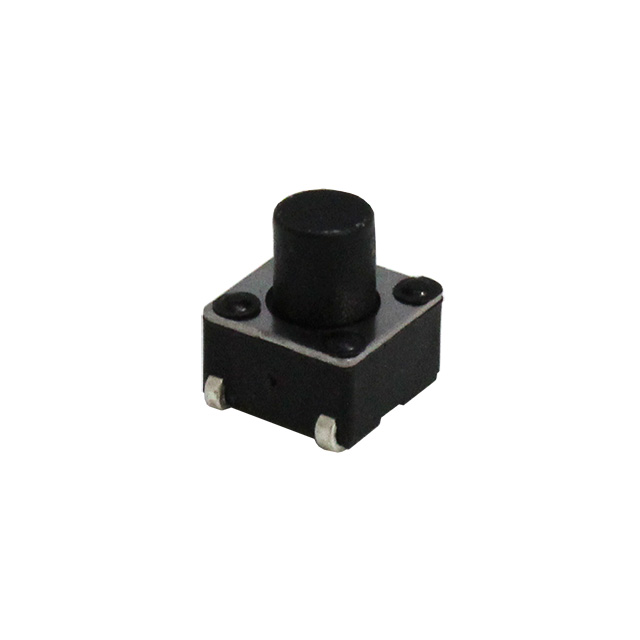

CIT Relay and Switch CS11027.0F160J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	160 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap	7 mm	Surface Mount	Top Actuated
CIT Relay and Switch CS11027.5F100J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	100 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap		Surface Mount	Top Actuated	7.5 mm
CIT Relay and Switch CS11027.0F260J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	260 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap	7 mm	Surface Mount	Top Actuated
CIT Relay and Switch CS11027.0F100J	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	100 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	J Lead	Plunger for Cap	7 mm	Surface Mount	Top Actuated
CIT Relay and Switch CS11027.5F100	Polyamide (PA46) Nylon 4/6	0.25 mm	85 °C	-40 C	0.05 A 50 VDC	100 gf	SPST-NO	Non-Illuminated	Off-Mom	6 mm	6 mm	Gull Wing	Plunger for Cap		Surface Mount	Top Actuated	7.5 mm
