58119 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

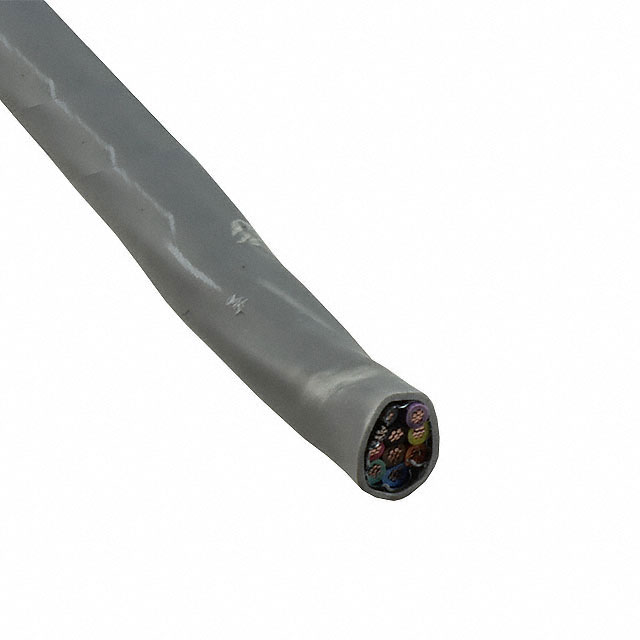

MULTICONDUCTOR CABLE, SHIELDED, 9 CONDUCTOR, 22 AWG, 0.35 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Shield Type | Number of Conductors | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Features | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Foil | 9 | Copper Bare | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.0154 " | 0.39 mm | 152.4 m | 500 ft | 5.11 mm | 0.201 in | 300 VDC | Poly-Vinyl Chloride (PVC) | -5 °C | 75 ░C | Multi-Conductor | Drain Wire | Slate |
 ALPHA WIRE | Aluminum | 100 % | Foil | 9 | Copper Bare | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.0154 " | 0.39 mm | 304.8 m | 1000 ft | 5.11 mm | 0.201 in | 300 VDC | Poly-Vinyl Chloride (PVC) | -5 °C | 75 ░C | Multi-Conductor | Drain Wire | Slate |
