5522-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .056"D .170"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Termination	Tail Type	Contact Finish
Mill-Max Manufacturing Corp. 5522-0-15-01-09-02-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	2.54 µm	100 µin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Tin-Lead
Mill-Max Manufacturing Corp. 5522-0-15-01-09-27-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	0.76 Ám	30 Áin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Gold
Mill-Max Manufacturing Corp. 5522-0-15-15-09-14-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	0.25 Ám	10 Áin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Gold

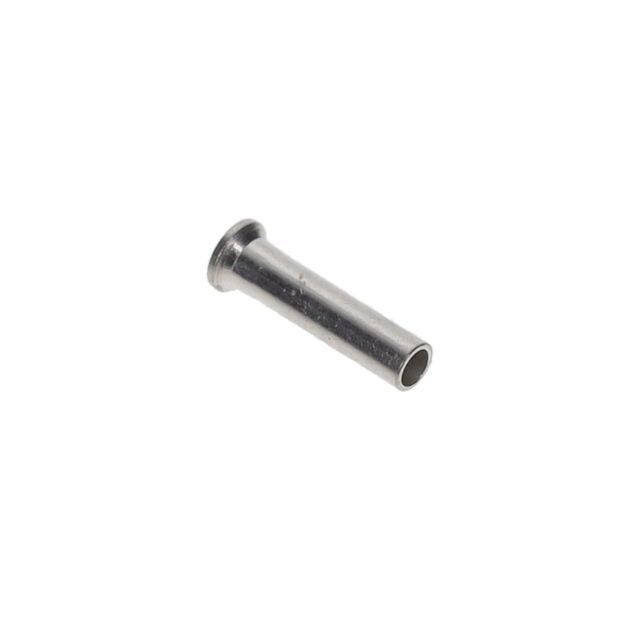

Mill-Max Manufacturing Corp. 5522-0-15-80-09-14-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	0.25 Ám	10 Áin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Gold
Mill-Max Manufacturing Corp. 5522-0-15-80-09-84-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	2.54 µm	100 µin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Tin
Mill-Max Manufacturing Corp. 5522-0-15-80-09-27-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	0.76 Ám	30 Áin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Gold

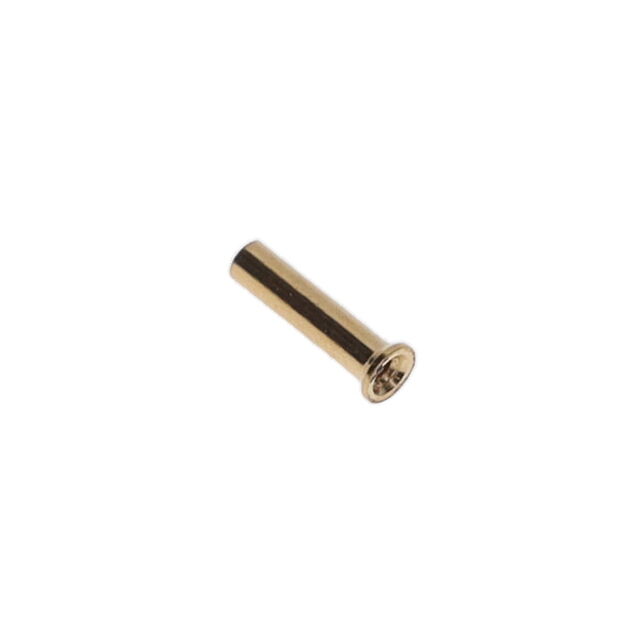

Mill-Max Manufacturing Corp. 5522-0-15-15-09-27-10-0	-55 C	125 °C	0.031 in	0.79 mm	Beryllium Copper	0.76 Ám	30 Áin	4.32 mm	0.17 in	0.17 in	4.32 mm	0.056 "	1.42 mm	1.02 mm	0.04 in	0.015 "	0.38 mm	0.46 mm	0.018 "	Solder	No Tail	Gold
