003928 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 6POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Shrouding	Style	Number of Positions	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Height [custom]	Insulation Height [custom]	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows	Contact Finish - Mating
Molex 0039281063	35 µin	0.9 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-2	All	Solder	Brass	0.9 µm	35.4 µin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	6	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2

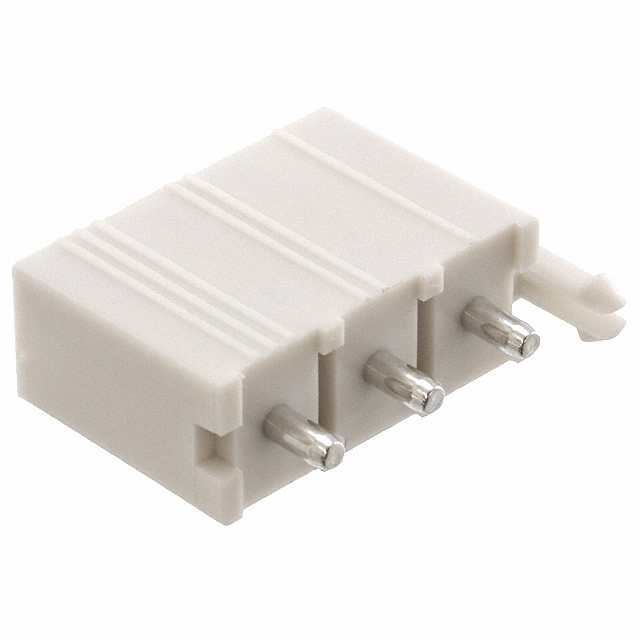

Molex 0039287038	39.4 çin	1 çm	General Purpose Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass			Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire		Natural			Header			Through Hole	Male Pin	Circular	0.264 in	6.71 mm		0.591 in	15 mm	Board Lock	39.4 µin	1 µm	1
Molex 0039289148	100 µin	2.54 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.76 Ám	30 Áin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	14	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2			Board Lock				Gold
Molex 0039288180	35 µin	0.9 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.9 µm	35.4 µin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	18	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2

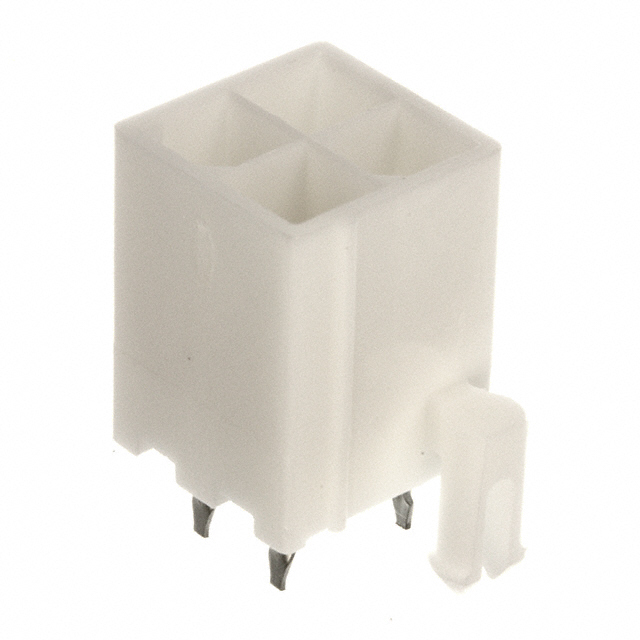

Molex 0039289048	100 µin	2.54 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.76 Ám	30 Áin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	4	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2			Board Lock				Gold
Molex 0039288040	35 µin	0.9 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.9 µm	35.4 µin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	4	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2
Molex 0039288200	35 µin	0.9 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.9 µm	35.4 µin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	20	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2

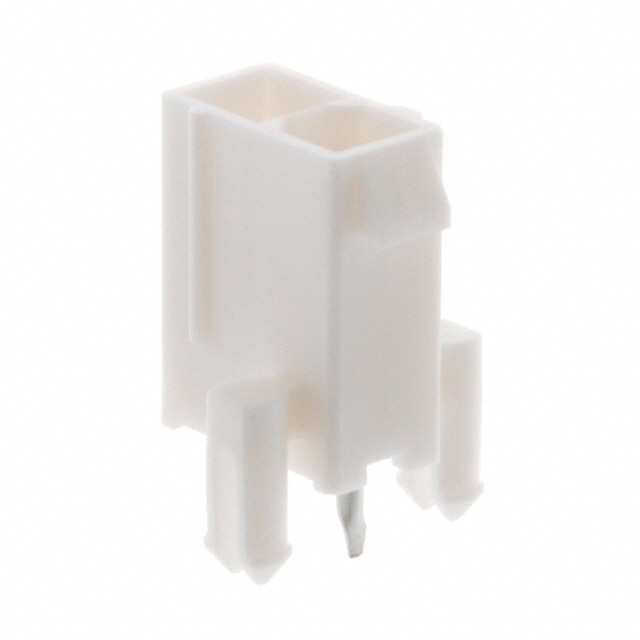

Molex 0039289028	100 µin	2.54 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-0	All	Solder	Brass	0.76 Ám	30 Áin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	2	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square			2			Board Lock				Gold
Molex 0039285106
Molex 0039281043	35 µin	0.9 µm	General Purpose Industrial Telecommunications	Nylon 6/6 Polyamide (PA66)	UL94 V-2	All	Solder	Brass	0.9 µm	35.4 µin	Tin	Locking Ramp	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	4	Natural	0.165 in	4.2 mm	Header	12.8 mm	0.504 "	Through Hole	Male Pin	Square	0.165 in	4.2 mm	2
