325-049 Series
Manufacturer: EDAC Inc.
Beta
⌘K

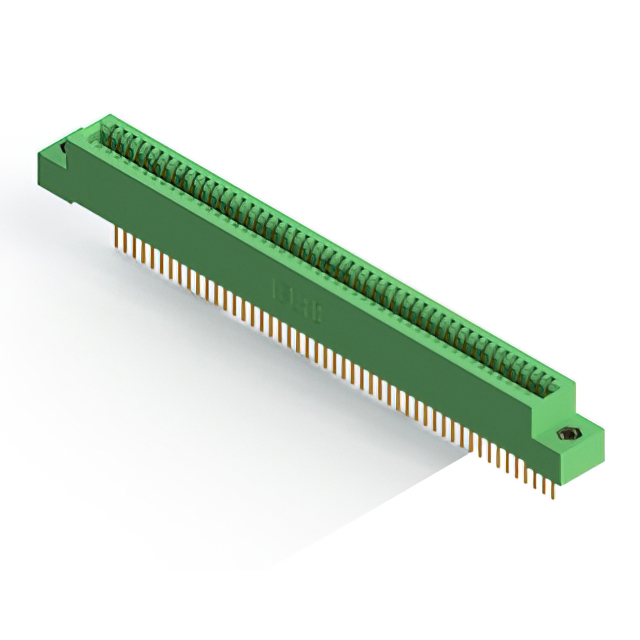

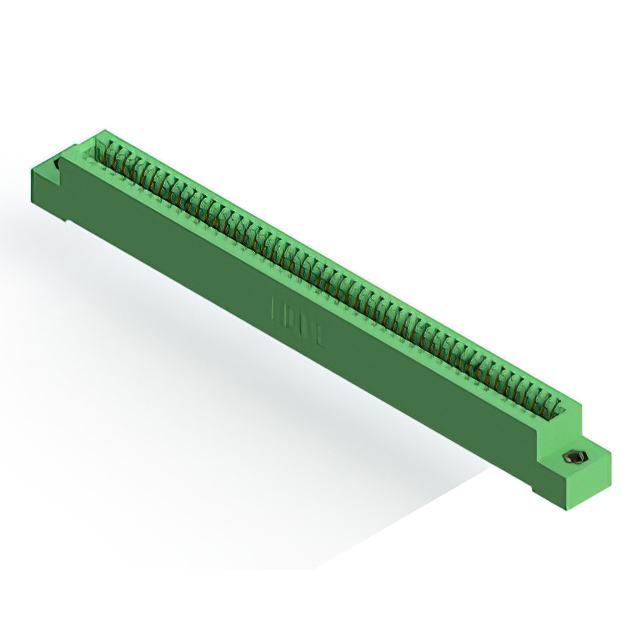

CONN EDGE SINGLE FML 49POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Number of Rows | Gender | Contact Type | Contact Material | Contact Finish | Flange Feature | Termination | Read Out | Number of Positions | Number of Positions/Bay/Row | Card Thickness | Card Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 1 | Female | Cantilever | Copper Alloy | Gold | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Single | 49 | 49 | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 1 | Female | Cantilever | Copper Alloy | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Single | 49 | 49 | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 1 | Female | Cantilever | Copper Alloy | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Single | 49 | 49 | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole |
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 1 | Female | Cantilever | Copper Alloy | Gold | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | Single | 49 | 49 | 3.18 mm | 0.125 in | -65 ░C | 125 °C | Through Hole |
