023003.5 Series

FUSE 250V SB PT IND 2AG Pb-FREE 3.5A

Catalog

FUSE 250V SB PT IND 2AG Pb-FREE 3.5A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Current Rating (Amps)	Response Time	Fuse Type	Approval Agency	Package / Case	Melting I²t	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage
LITTELFUSE 023003.5DRT2SP	-55 C	125 °C	0.571 in	4.5 mm	0.177 "	14.5 mm	3.5 A	Slow Blow	Cartridge Glass	CE CSA PSE UL	Cartridge Non-Standard (Axial)	110	250 V	Through Hole	125 VDC	10 kA 100 A
LITTELFUSE 023003.5DRT2P	-55 C	125 °C	0.571 in	4.5 mm	0.177 "	14.5 mm	3.5 A	Slow Blow	Cartridge Glass	CE CSA PSE UL	Cartridge Non-Standard (Axial)	110	250 V	Through Hole	125 VDC	10 kA 100 A
LITTELFUSE 023003.5DRT1P	-55 C	125 °C	0.571 in	4.5 mm	0.177 "	14.5 mm	3.5 A	Slow Blow	Cartridge Glass	CE CSA PSE UL	Cartridge Non-Standard (Axial)	110	250 V	Through Hole	125 VDC	10 kA 100 A

Catalog

FUSE 250V SB PT IND 2AG Pb-FREE 3.5A

Description

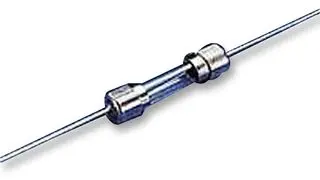

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
