PFB0848 Series

Catalog

FAN AXIAL 80X38MM 48VDC WIRE

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Power (Watts)	RPM	Bearing Type	Approval Agency	Fan Type	Width [y]	Noise	Weight	Weight	Voltage - Rated	Static Pressure	Static Pressure	Termination	Features
Delta Electronics PFB0848UHE	Plastic	Plastic	0.42 A	28 V	56 VDC	40 °C 50000 Hrs	-10 °C	60 °C	80 mm	80 mm	3 m³/min	107.3 CFM	20.16 W	7500 RPM	Ball	CE CSA UL VDE	Tubeaxial	38 mm	61 dB(A)	205.02 g	0.452 lb	48 VDC	340.8 Pa	1.368 in H2O	2 Wire Leads

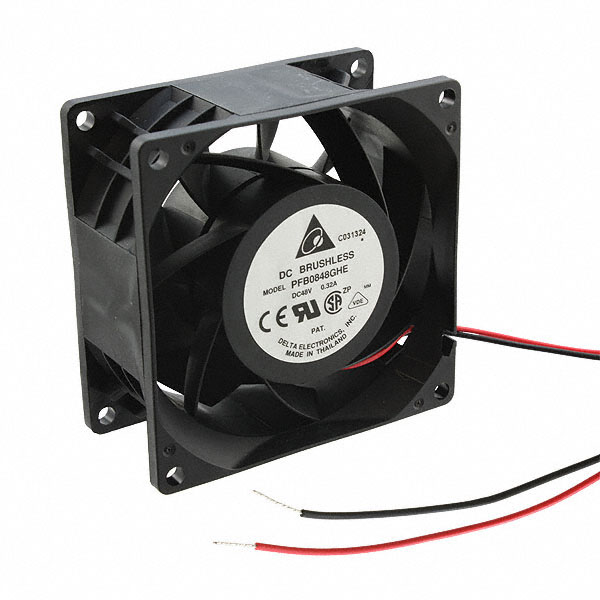

Delta Electronics PFB0848GHE	Plastic	Plastic	270 mA	28 V	56 VDC	40 °C 50000 Hrs	-10 °C	60 °C	80 mm	80 mm	2.42 m³/min	86.4 CFM	12.96 W	6100 RPM	Ball	CE CSA UL VDE	Tubeaxial	38 mm	55.5 dB	205.02 g	0.452 lb	48 VDC	223.7 Pa	0.898 in H2O	2 Wire Leads
Delta Electronics PFB0848UHE-R00	Plastic	Plastic	0.42 A	28 V	56 VDC	40 °C 50000 Hrs	-10 °C	60 °C	80 mm	80 mm	3 m³/min	107.3 CFM	20.16 W	7500 RPM	Ball	CE CSA UL VDE	Tubeaxial	38 mm	61 dB(A)	205.02 g	0.452 lb	48 VDC	340.8 Pa	1.368 in H2O	3 Wire Leads	Locked Rotor Sensor
