SM11B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

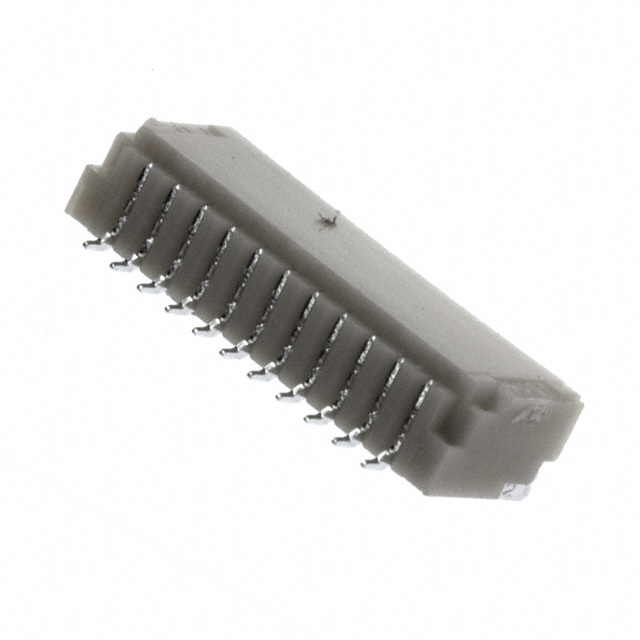

CONN HEADER SMD R/A 11POS 1MM
| Part | Mounting Type | Features | Contact Finish - Post | Contact Type | Insulation Color | Number of Positions Loaded | Insulation Material | Number of Positions | Shrouding | Material Flammability Rating | Contact Material | Style | Contact Shape | Number of Rows | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | Solder Retention | Tin | Male Pin | Natural | All | Nylon Polyamide (PA) | 11 | Shrouded - 4 Wall | UL94 V-0 | Copper Alloy | Board to Cable/Wire | Square | 1 | 0.114 in | 2.9 mm | 1 mm | 0.039 in | Push-Pull | 85 °C | -25 °C | Header | Solder | 50 V |
