9503 Series
Manufacturer: Belden Inc.
Beta
⌘K

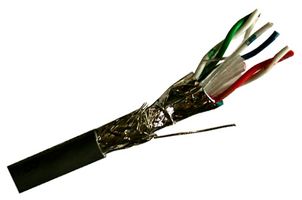

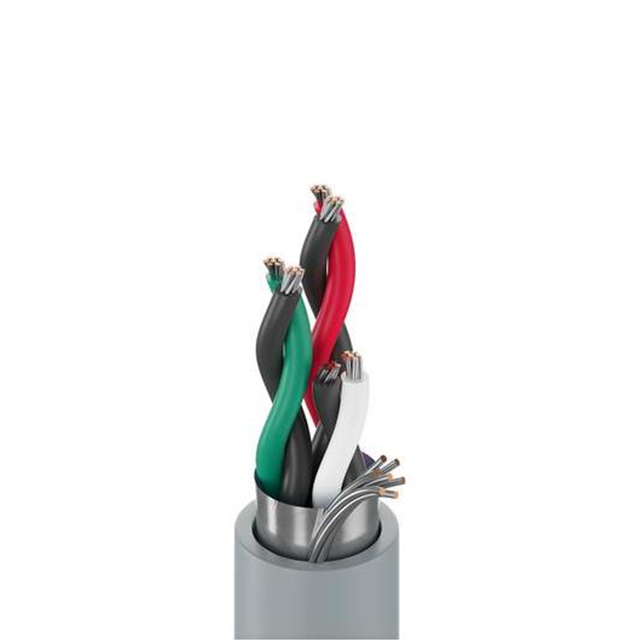

MULTIPAIR CABLE, COMPUTER, SHIELDED, 3 PAIR, 24 AWG, 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Ratings | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Features | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Insulation | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 152.4 m | 500 ft | 5.89 mm | 0.232 in | Computer | Drain Wire | Copper Tinned | 24 AWG | 7 | 32 AWG | Multi-Pair | 6 | 80 °C | -30 ░C | Foil | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome |
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 152.4 m | 500 ft | 5.89 mm | 0.232 in | Computer | Drain Wire | Copper Tinned | 24 AWG | 7 | 32 AWG | Multi-Pair | 6 | 80 °C | -30 ░C | Foil | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 304.8 m | 1000 ft | 5.89 mm | 0.232 in | Computer | Drain Wire | Copper Tinned | 24 AWG | 7 | 32 AWG | Multi-Pair | 6 | 80 °C | -30 ░C | Foil | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome |
