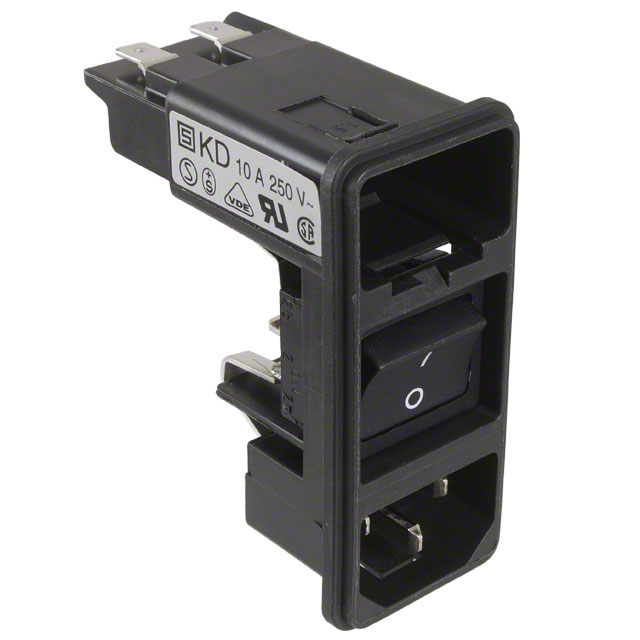

KD14.1101 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
KD, MOUNTING:SCREW, QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination | Termination | Termination | Switch Features | Approval Agency | Filter Type | Mounting Type | Ingress Protection | Connector Type | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Material Flammability Rating | Accomodates a Fuse | Connector Style | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 27.5 mm | 66.5 mm | 0.189 " | 4.8 mm | Quick Connect | Switch On-Off | CCC CSA ENEC UL | Unfiltered - Commercial | Flange Panel Mount | IP40 | Receptacle Male Blades - Module | 250 VAC | 10 A | Drawer Sold Separate | UL94 V-0 | IEC 320-C14 | |||
 SCHURTER Inc. | 27.5 mm | 66.5 mm | 0.189 " | 4.8 mm | Quick Connect | Switch On-Off | CCC CSA ENEC UL | Unfiltered - Commercial | Panel Mount Snap-In | IP40 | Receptacle Male Blades - Module | 250 VAC | 10 A | Drawer Sold Separate | UL94 V-0 | IEC 320-C14 | 0.098 in | 2.5 mm |
