395-126 Series
Manufacturer: EDAC Inc.
Catalog

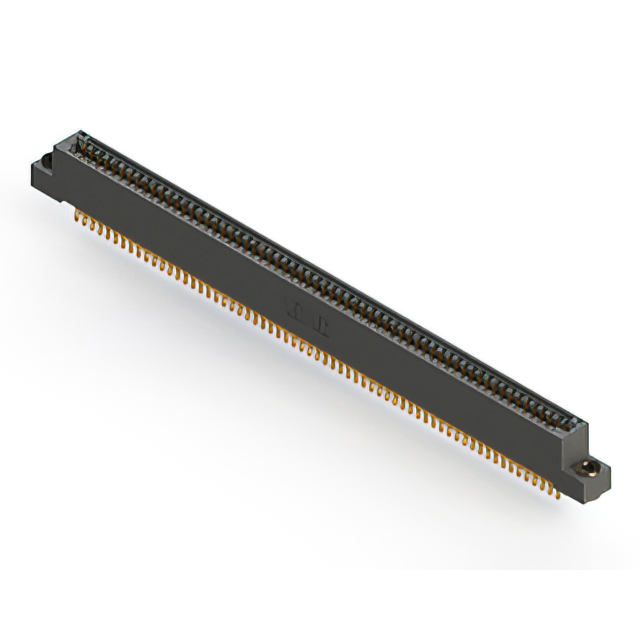

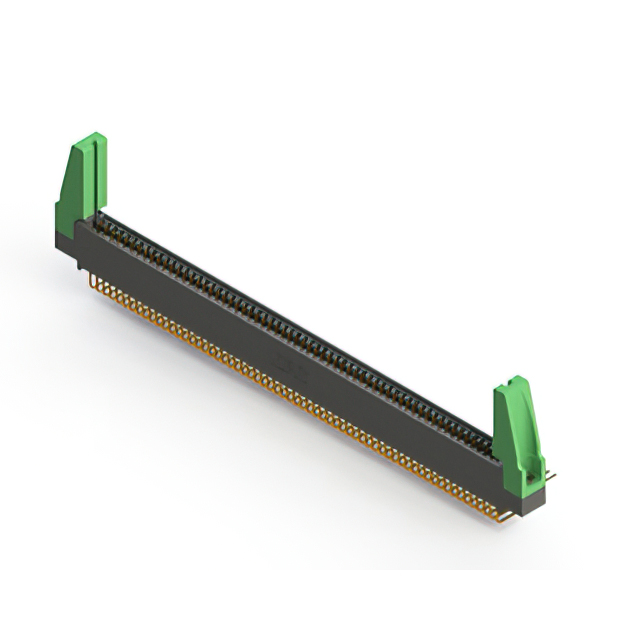

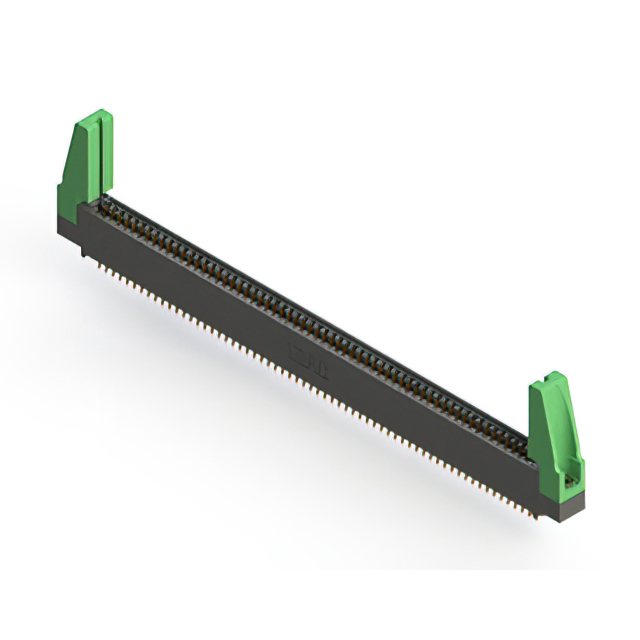

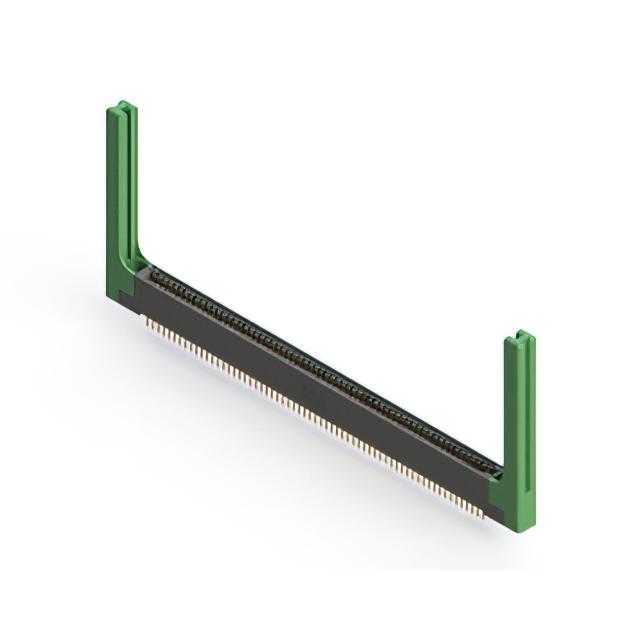

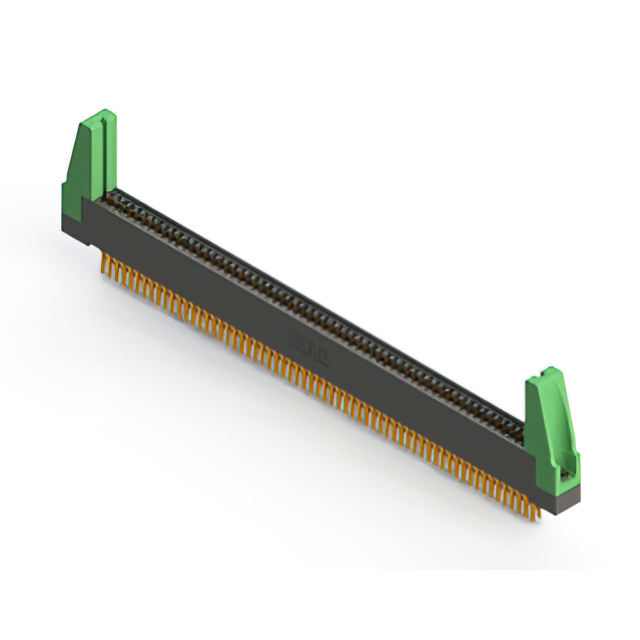

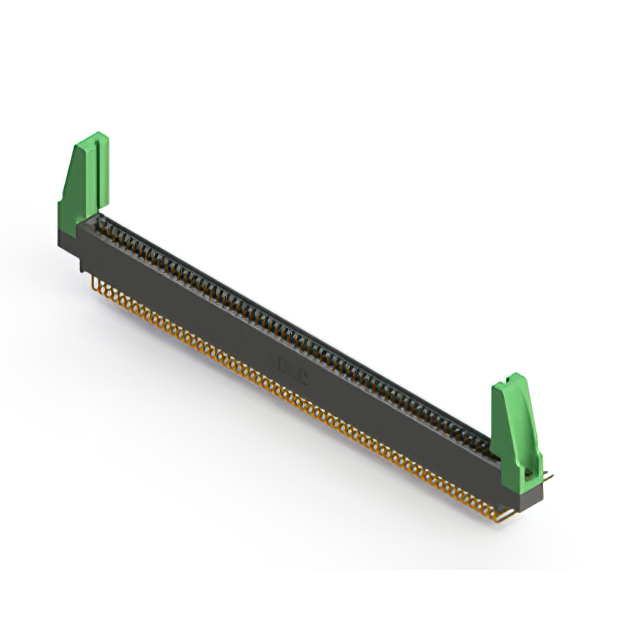

CONN EDGE DUAL FML 126POS 0.100
...
| Part | Contact Material | Read Out | Card Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features | Termination Rows | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Gender | Material - Insulation | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Color | Contact Finish | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Card Extender | 2 | Solder Eyelet(s) | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Board Edge Straddle Mount | Cantilever |
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Card Guides | 2 | Solder | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole Right Angle | Cantilever | ||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | 2 | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole | Cantilever | |
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Card Guides | 2 | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole | Cantilever | ||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Board Edge Straddle Mount | Cantilever | |||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | 2 | Wire Wrap | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole | Cantilever | |
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Card Guides | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole | Cantilever | ||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Through Hole Right Angle | Cantilever | |||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | 2 | Solder | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Board Edge Straddle Mount | Cantilever | |||
 EDAC Inc. | Copper Alloy | Dual | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Card Extender | 2 | Solder | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 126 | Female | Polyester Thermoplastic | 63 | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Black | Gold | Board Edge Straddle Mount | Cantilever |
