TPS65124 Series
Manufacturer: Texas Instruments
Beta
⌘K
3-CH SINGLE INDUCTOR MULTIPLE OUTPUTS (SIMO) BIAS IC W/ ADJUSTABLE SEQUENCING
| Part | Mounting Type | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Number of Outputs | Applications | Supplier Device Package | Board Type | Supplied Contents | Power - Output | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose | Contents | Current - Output [custom] | Regulator Topology | Utilized IC / Part | Outputs and Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 5.6 V 20 V | -18 V 3 V | 5.5 V | 2.5 V | 85 °C | -40 C | 16-VFQFN Exposed Pad | 4 | Converter TFT LCD | 16-VQFN 3x3 | ||||||||||||
Texas Instruments | Surface Mount | 5.6 V 20 V | -18 V 3 V | 5.5 V | 2.5 V | 85 °C | -40 C | 16-VFQFN Exposed Pad | 4 | Converter TFT LCD | 16-VQFN 3x3 | ||||||||||||
Texas Instruments | Surface Mount | 5.6 V 20 V | -18 V 3 V | 5.5 V | 2.5 V | 85 °C | -40 C | 16-VFQFN Exposed Pad | 4 | Converter TFT LCD | 16-VQFN 3x3 | ||||||||||||

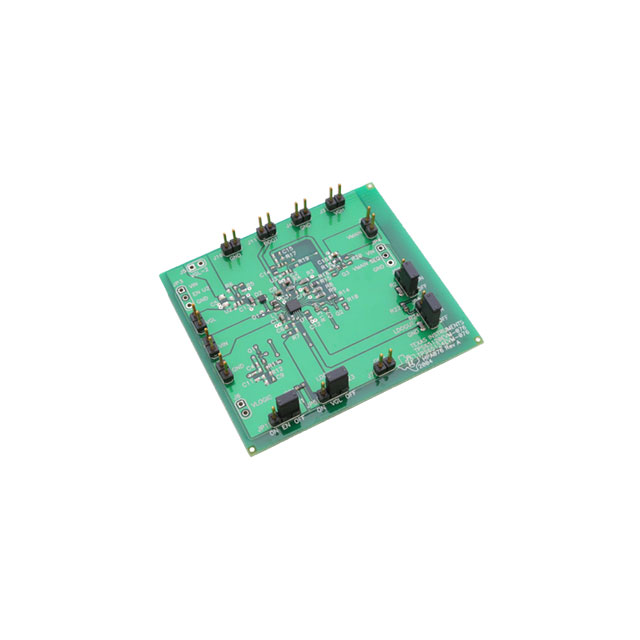

 Texas Instruments | 5.5 V | 2.5 V | Fully Populated | Board(s) | 287 mW | Non-Isolated Non-Isolated Outputs | 3 | 3.3 V 5 V 12 V | Special Purpose DC/DC LCD Supply | Board(s) | 4 mA 25 mA | Boost | TPS65124 | 3 |
