CLS-TC11 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

SWITCH TOGGLE SPST 20A 12V

Part	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type	Voltage Rating - DC	Mounting Type	Termination Style	Illumination Voltage (Nominal)	Actuator Length [x]	Illumination Type, Color	Current Rating (Amps)	Illumination	Circuit	Bushing Thread

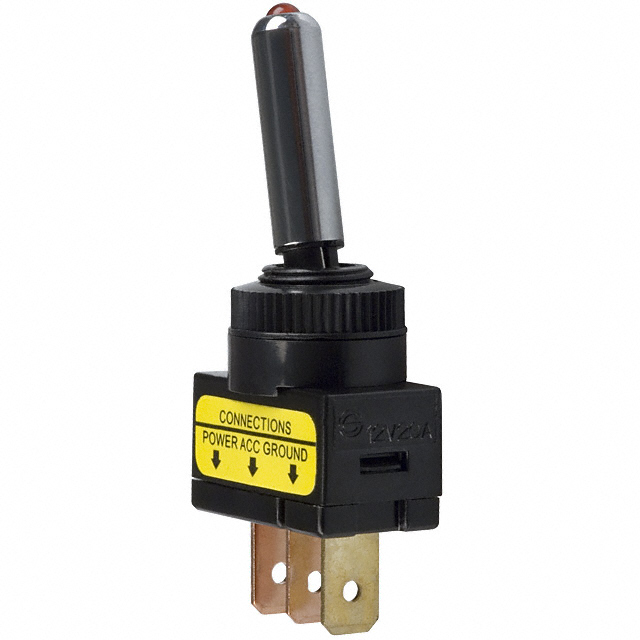

Lumex Opto/Components Inc. CLS-TC11A12253R	12 mm	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	23.2 mm	LED Red	20 A	Illuminated	SPST
Lumex Opto/Components Inc. CLS-TC11A12250R	12.2 mm Dia	On-Off	Standard Round	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	20 mm	LED Red	20 A	Illuminated	SPST	M12 x 0.75

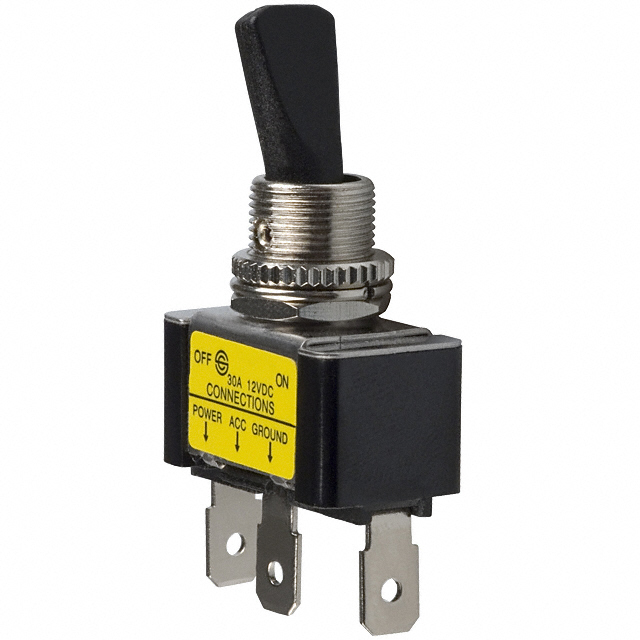

Lumex Opto/Components Inc. CLS-TC11A12251B	12.2 mm Dia	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC		Blue LED		Illuminated	SPST	M12 x 0.75
Lumex Opto/Components Inc. CLS-TC11A12252G	12 mm	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	26.27 mm	Green LED	20 A	Illuminated	SPST

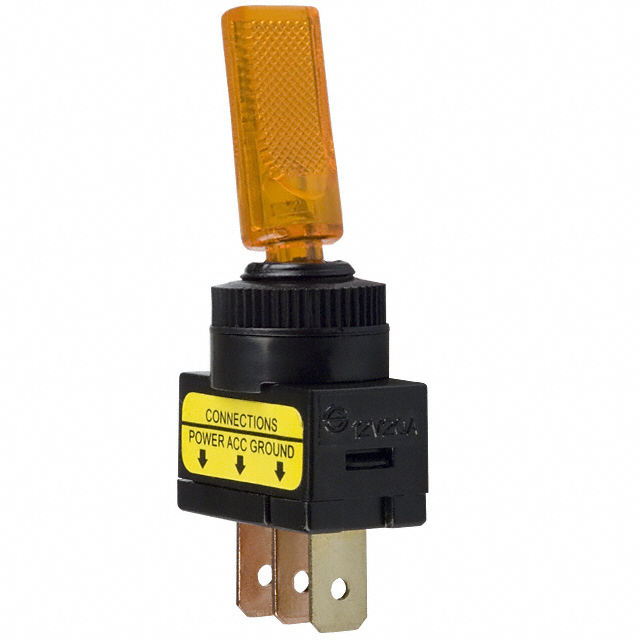

Lumex Opto/Components Inc. CLS-TC11A12252Y	12 mm	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	26.27 mm	LED Yellow	20 A	Illuminated	SPST

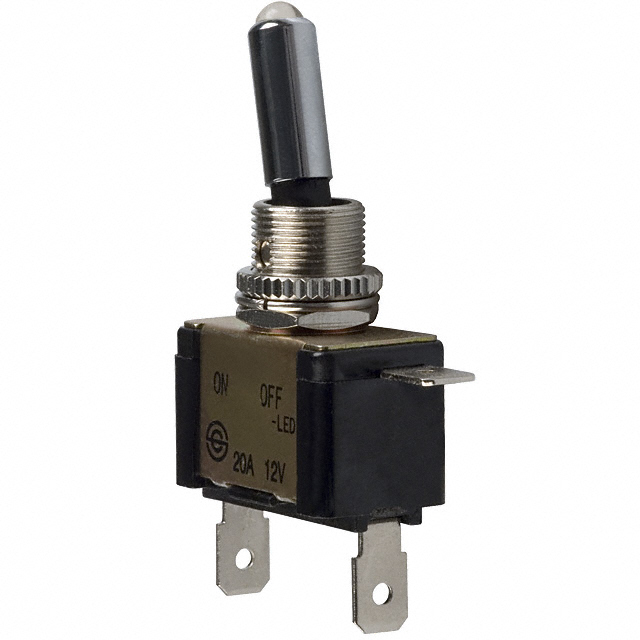

Lumex Opto/Components Inc. CLS-TC11A12250B	12.2 mm Dia	On-Off	Standard Round	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	20 mm	Blue LED	20 A	Illuminated	SPST	M12 x 0.75

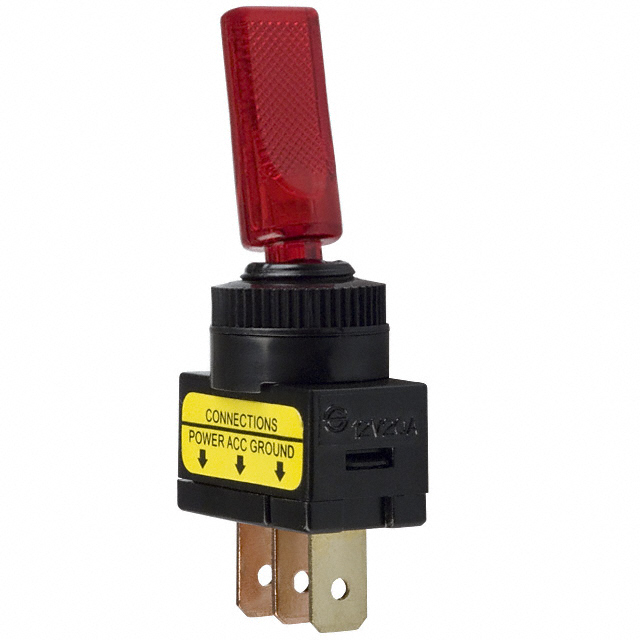

Lumex Opto/Components Inc. CLS-TC11A12252R	12 mm	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC	26.27 mm	LED Red	20 A	Illuminated	SPST

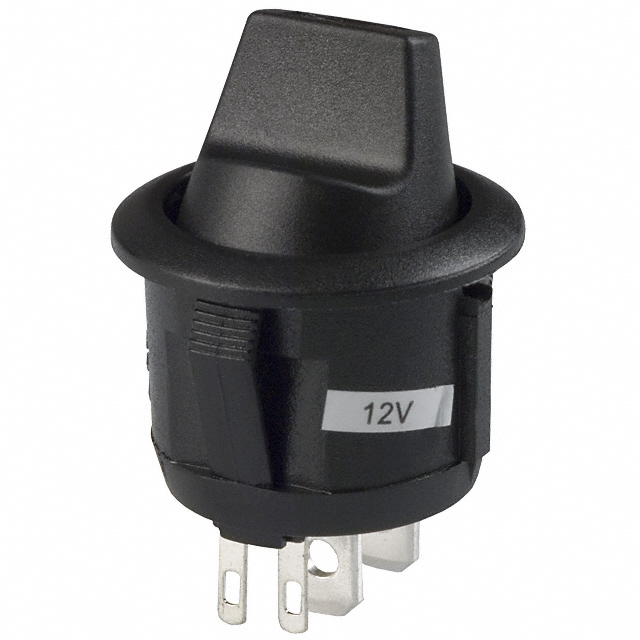

Lumex Opto/Components Inc. CLS-TC11A12190R	20.2 mm	On-Off	Flatted	12 V	Panel Mount Snap-In	Quick Connect	12 VDC		LED Red	20 A	Illuminated	SPST

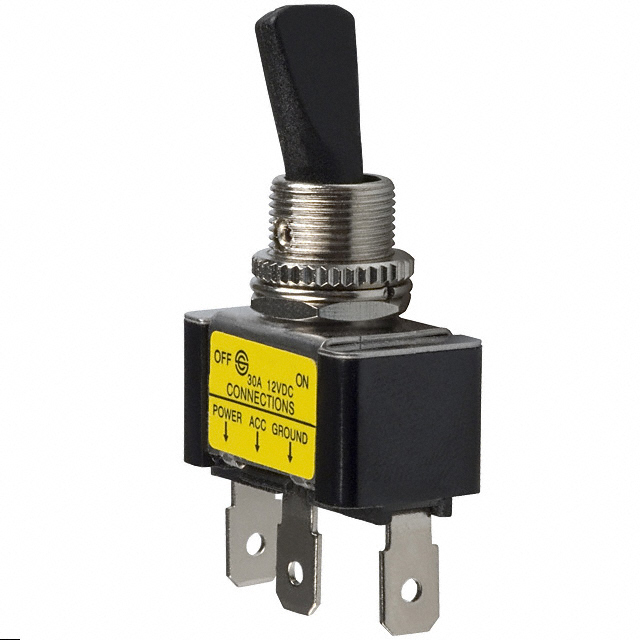

Lumex Opto/Components Inc. CLS-TC11A12251R	12.2 mm Dia	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC		LED Red		Illuminated	SPST	M12 x 0.75
Lumex Opto/Components Inc. CLS-TC11A12251G	12.2 mm Dia	On-Off	Flatted	12 V	Panel Mount	Quick Connect - 0.250" (6.3mm)	12 VDC		Green LED		Illuminated	SPST	M12 x 0.75
