EKA20 Series
Manufacturer: TE Intercontec
Beta
⌘K

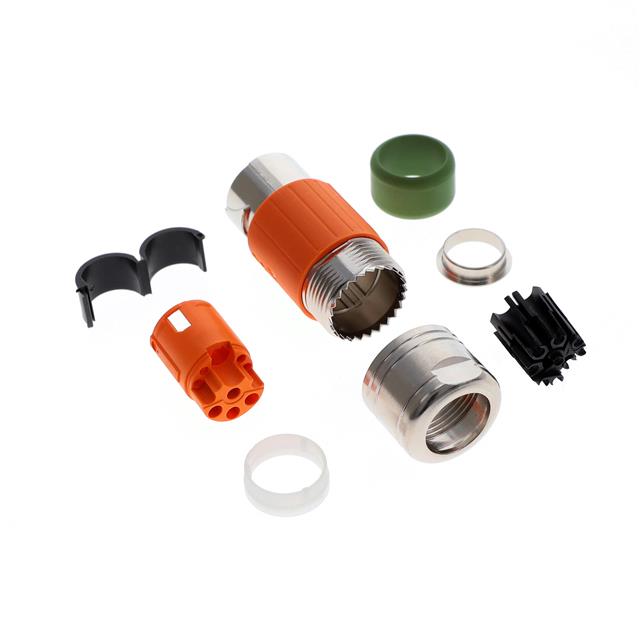

CONN RCPT HSG MALE 9POS INLINE
| Part | Material Flammability Rating | Number of Positions | Shielding | Fastening Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Housing Color | Ingress Protection | Type | Note | Mounting Type | Connector Type | Features | Includes | Insert Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | UL94 V-0 | 9 | Shielded | Bayonet Lock | Circular | -20 ░C | 130 °C | Zinc Die Cast | Orange Silver | IP66 IP67 | For Male Pins | Contacts Not Included | Free Hanging (In-Line) | Receptacle Housing | Backshell Cable Clamp | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed |
TE Intercontec | UL94 V-0 | 9 | Shielded | Bayonet Lock | Circular | -20 ░C | 130 °C | Zinc Die Cast | Orange Silver | IP66 IP67 | For Male Pins | Contacts Not Included | Free Hanging (In-Line) | Receptacle Housing | Backshell Cable Clamp | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed |
 TE Intercontec | UL94 V-0 | 9 | Shielded | Bayonet Lock | Circular | -20 ░C | 130 °C | Zinc Die Cast | Orange Silver | IP66 IP67 | For Male Pins | Contacts Not Included | Free Hanging (In-Line) | Receptacle Housing | Backshell Cable Clamp | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed |
