51-261 Series
Manufacturer: EAO
Beta
⌘K

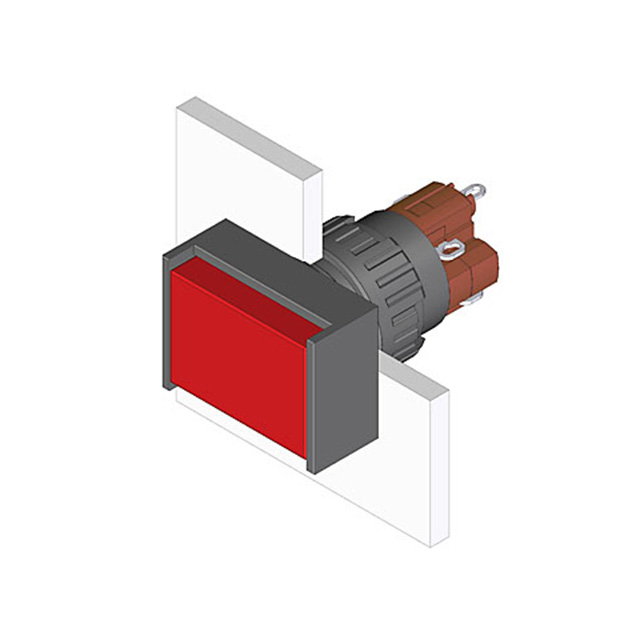

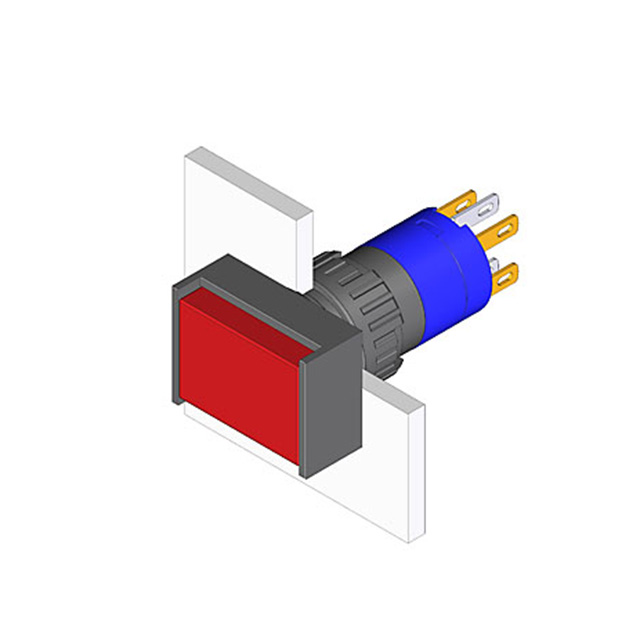

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER
| Part | Mechanical Life | Current Rating (Amps) | Termination Style | Mounting Type | Voltage Rating - AC | Actuator Marking | Panel Cutout Dimensions [diameter] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Type | Switch Function | Actuator Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | 5 A | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | 250 V | No Marking | 16 mm | DPST-NO/NC | 55 °C | -25 °C | Standard | Off-On On-Off | Button Rectangular | IP65 - Dust Tight Water Resistant |
 EAO | 1000000 Cycles | 5 A | Solder Lug | Panel Mount Front | 250 V | No Marking | 16 mm | DPST-NO/NC | 55 °C | -25 °C | Standard | Off-On On-Off | Button Rectangular | IP65 - Dust Tight Water Resistant |
