D01-995 Series

Catalog

CONN SOCKET SIP 7POS GOLD

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]

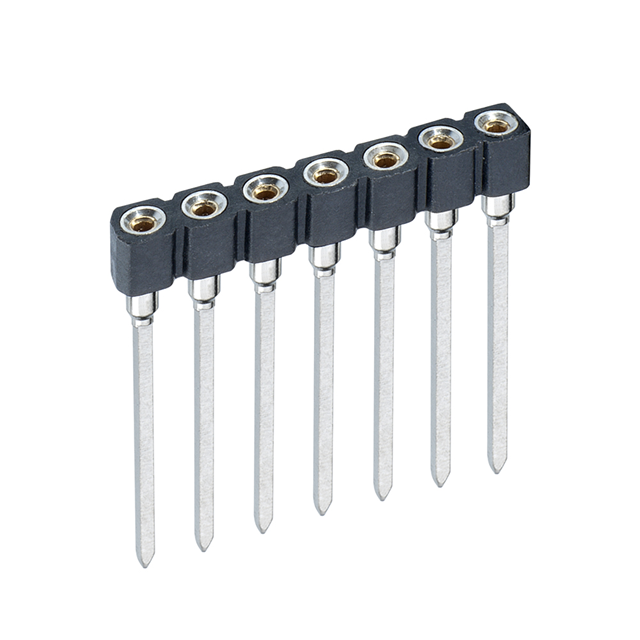

Harwin Inc. D01-9950742	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm	7	7	1	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP

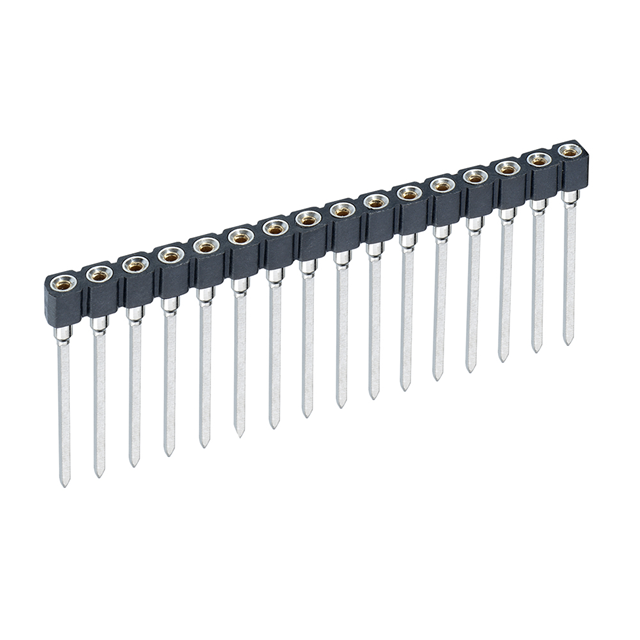

Harwin Inc. D01-9951642	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		16		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP	1 x 16

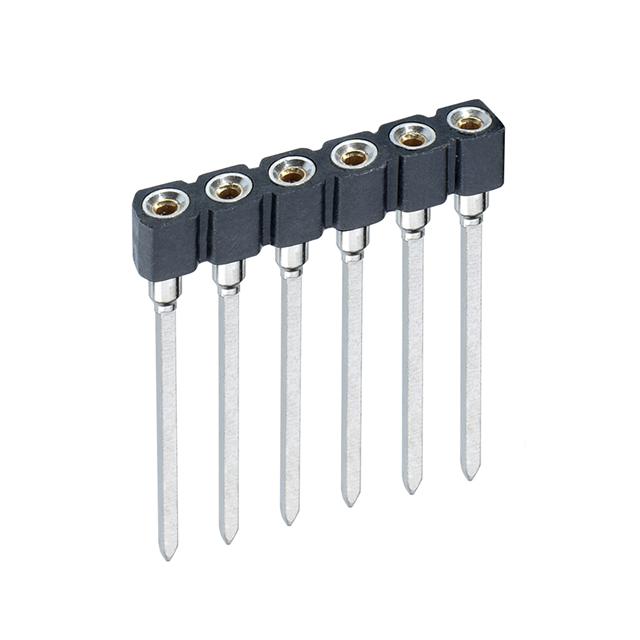

Harwin Inc. D01-9950642	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm				Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP

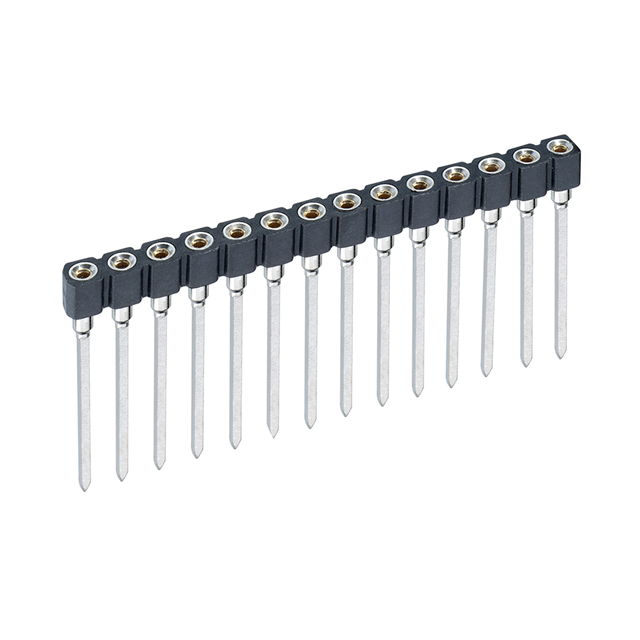

Harwin Inc. D01-9951442	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		14		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP

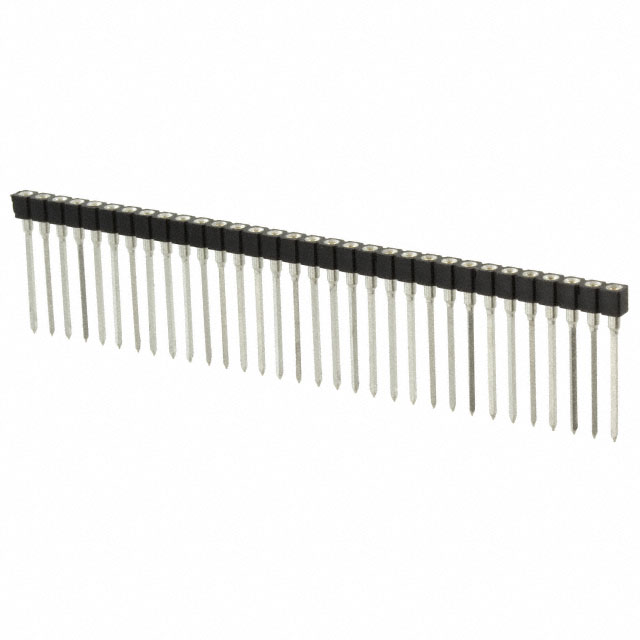

Harwin Inc. D01-9953242	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		32		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP		1 x 32

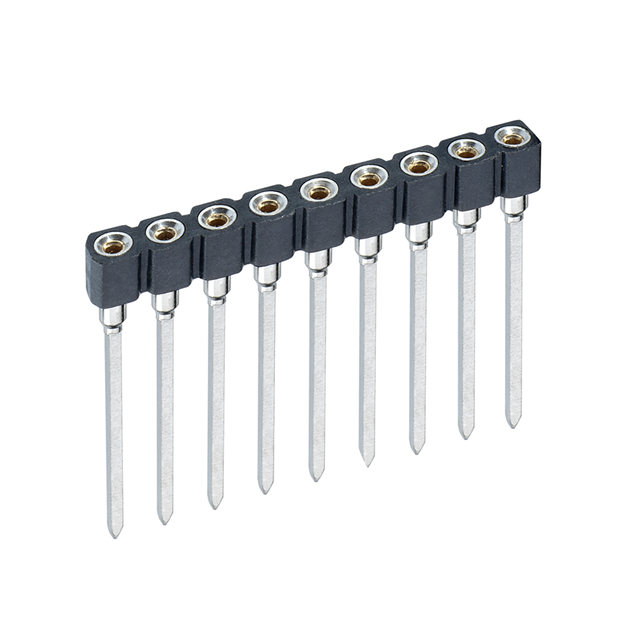

Harwin Inc. D01-9950942	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		9		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP

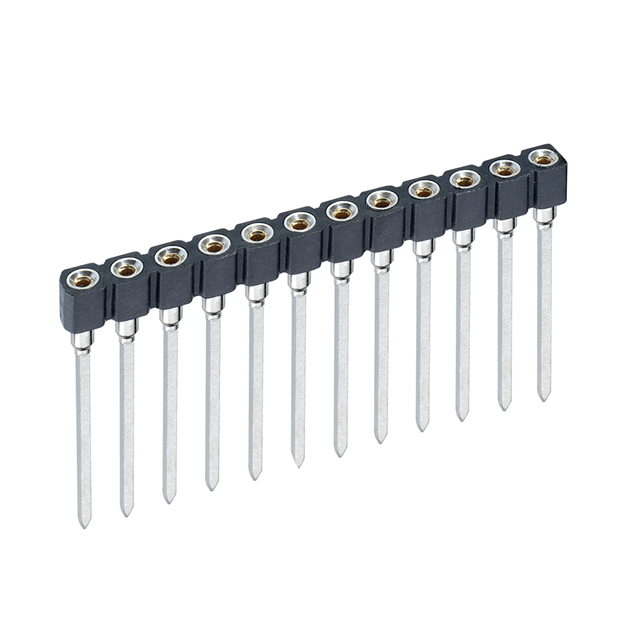

Harwin Inc. D01-9951242	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm				Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP			1	12	12

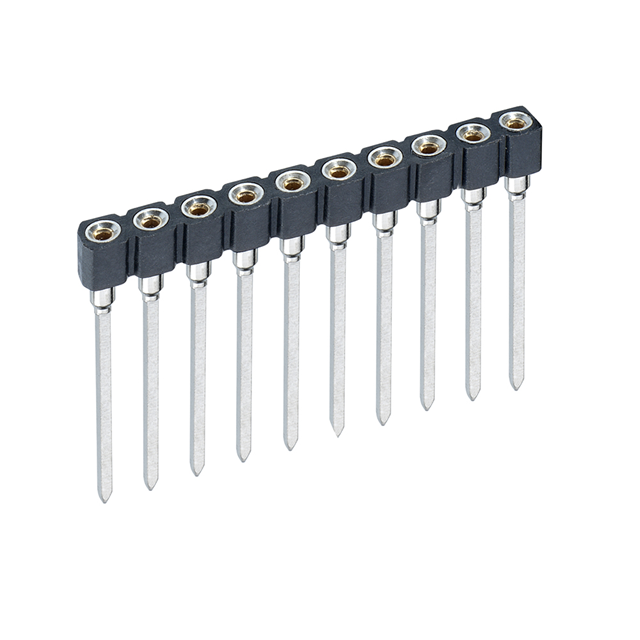

Harwin Inc. D01-9951042	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		10		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP			1		10

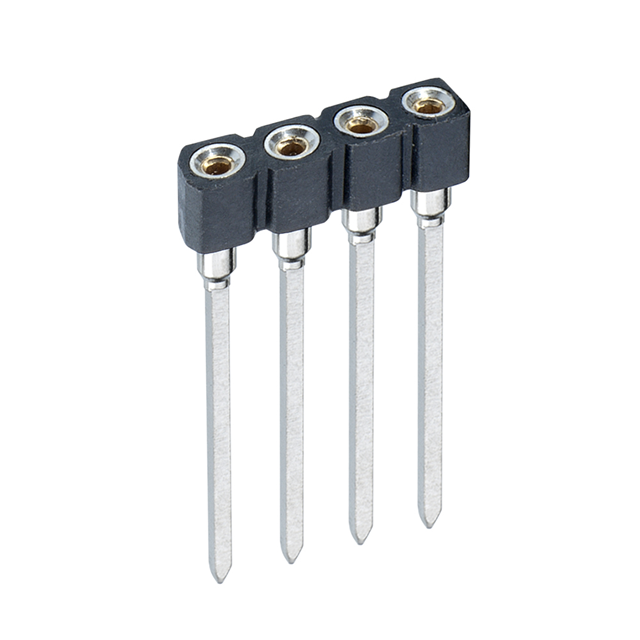

Harwin Inc. D01-9950442	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		4 pins		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP	1 x 4

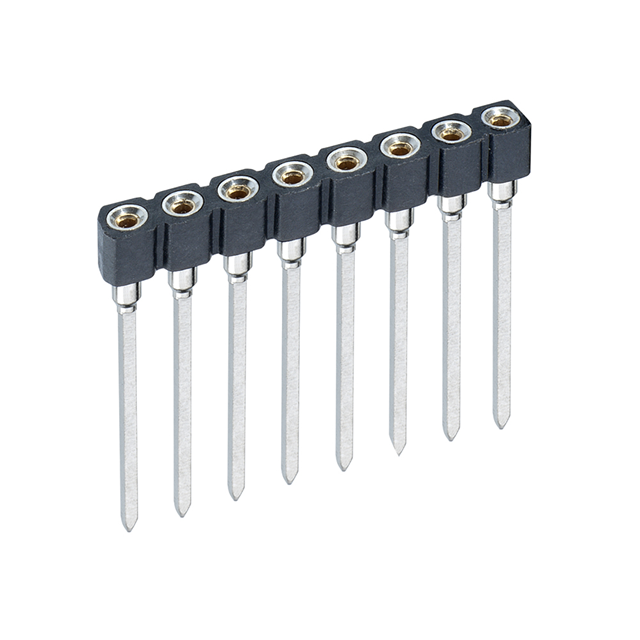

Harwin Inc. D01-9950842	12.95 mm	0.51 "	UL94 V-0	1 A	10 mOhm		8		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	0.1 "	2.54 mm	0.1 in	2.54 mm	5 µm	196.9 µin	Beryllium Copper	Tin	Through Hole	Gold	Wire Wrap	-55 C	125 °C	Brass	SIP			1		8
