AMC1200-Q1 Series

Automotive, ±250-mV input, precision current sensing basic isolated amplifier

Catalog

Automotive, ±250-mV input, precision current sensing basic isolated amplifier

Part	Voltage - Supply Span (Min) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Supply	Number of Circuits	-3db Bandwidth	Output Type	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Current - Output / Channel	Amplifier Type	Grade	Qualification	Package / Case	Package / Case [custom]	Package / Case [custom]	Current - Supply (Main IC)	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC	Supplied Contents	Utilized IC / Part
Texas Instruments AMC1200BDUB	2.7 V	Surface Mount	-40 °C	105 ░C	8-SOP	5.4 mA	1	100 kHz	Differential	200 çV	5.5 V	20 mA	Isolation
Texas Instruments AMC1200SDUBR	2.7 V	Surface Mount	-40 °C	105 ░C	8-SOP	5.4 mA	1	100 kHz	Differential	200 çV	5.5 V	20 mA	Isolation
Texas Instruments AMC1200STDUBRQ1	2.7 V	Surface Mount	-40 °C	105 ░C	8-SOP	5.4 mA	1	100 kHz	Differential	200 çV	5.5 V	20 mA	Isolation	Automotive	AEC-Q100
Texas Instruments AMC1200BDUBR	2.7 V	Surface Mount	-40 °C	105 ░C	8-SOP	5.4 mA	1	100 kHz	Differential	200 çV	5.5 V	20 mA	Isolation
Texas Instruments AMC1200BDWV	2.7 V	Surface Mount	-40 °C	105 ░C	8-SOIC	5.4 mA	1	100 kHz	Differential	200 çV	5.5 V		Isolation			8-SOIC	0.295 in	7.5 mm

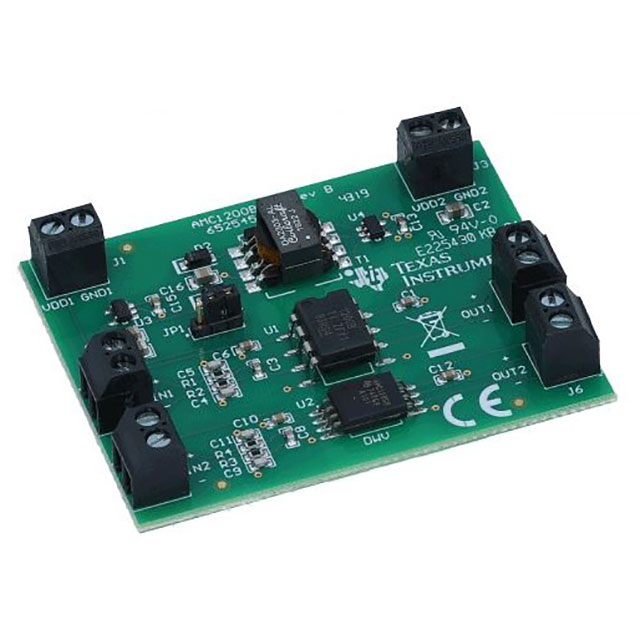

Texas Instruments AMC1200EVM								100 kHz	Differential			20 mA	Isolation						5.4 mA	Fully Populated	5.5 V	2.7 V	1 - Single	Board(s)	AMC1200

Catalog

Automotive, ±250-mV input, precision current sensing basic isolated amplifier

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Temperature Grade 2: –40°C to 105°CHBM ESD Classification Level H2CDM ESD Classification Level C3B±250-mV Input Voltage Range Optimized forShunt ResistorsVery Low Nonlinearity: 0.075% (max)with 5-V High-Side SupplyLow Offset Error: 1.5 mV (max)Low Noise: 3.1 mVRMS(typical)Low High-Side Supply Current:8 mA (max) at 5 VInput Bandwidth: 60 kHz (min)Fixed Gain: 8 (0.5% accuracy)High Common-Mode Rejection Ratio:108 dB (typical)3.3-V Operation on Low-SideCertified Galvanic Isolation:UL1577 and VDE V 0884-10 ApprovedIsolation Voltage: 4250 VPEAKWorking Voltage: 1200 VPEAKTransient Immunity: 10 kV/\xECs (min)Typical 10-Year Lifespan at Rated WorkingVoltage (see Application Report, SLLA197Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Temperature Grade 2: –40°C to 105°CHBM ESD Classification Level H2CDM ESD Classification Level C3B±250-mV Input Voltage Range Optimized forShunt ResistorsVery Low Nonlinearity: 0.075% (max)with 5-V High-Side SupplyLow Offset Error: 1.5 mV (max)Low Noise: 3.1 mVRMS(typical)Low High-Side Supply Current:8 mA (max) at 5 VInput Bandwidth: 60 kHz (min)Fixed Gain: 8 (0.5% accuracy)High Common-Mode Rejection Ratio:108 dB (typical)3.3-V Operation on Low-SideCertified Galvanic Isolation:UL1577 and VDE V 0884-10 ApprovedIsolation Voltage: 4250 VPEAKWorking Voltage: 1200 VPEAKTransient Immunity: 10 kV/\xECs (min)Typical 10-Year Lifespan at Rated WorkingVoltage (see Application Report, SLLA197

Description

The AMC1200 and AMC1200B are precision isolation amplifiers with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier has been certified to provide galvanic isolation of up to 4250 VPEAK(AMC1200B) or 4000 VPEAK(AMC1200) according to UL1577 and VDE V 0884-10. Used in conjunction with isolated power supplies, these devices prevent noise currents on a high common mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The input of the AMC1200 or AMC1200B is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device supports accurate current control resulting in system-level power saving and, especially in motor-control applications, lower torque ripple. The common mode voltage of the output signal is automatically adjusted to either the 3-V or 5-V low-side supply. The AMC1200 and AMC1200B are fully specified over the extended industrial temperature range of –40°C to 105°C and are available in a wide-body SOIC-8 package (DWV) and a gullwing-8 package (DUB). The AMC1200 and AMC1200B are precision isolation amplifiers with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier has been certified to provide galvanic isolation of up to 4250 VPEAK(AMC1200B) or 4000 VPEAK(AMC1200) according to UL1577 and VDE V 0884-10. Used in conjunction with isolated power supplies, these devices prevent noise currents on a high common mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The input of the AMC1200 or AMC1200B is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device supports accurate current control resulting in system-level power saving and, especially in motor-control applications, lower torque ripple. The common mode voltage of the output signal is automatically adjusted to either the 3-V or 5-V low-side supply. The AMC1200 and AMC1200B are fully specified over the extended industrial temperature range of –40°C to 105°C and are available in a wide-body SOIC-8 package (DWV) and a gullwing-8 package (DUB).
