1634688 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Length - Post	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Mounting Type	Number of Positions	Shrouding	Contact Finish - Post	Termination	Contact Material	Contact Shape	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Style	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Number of Positions

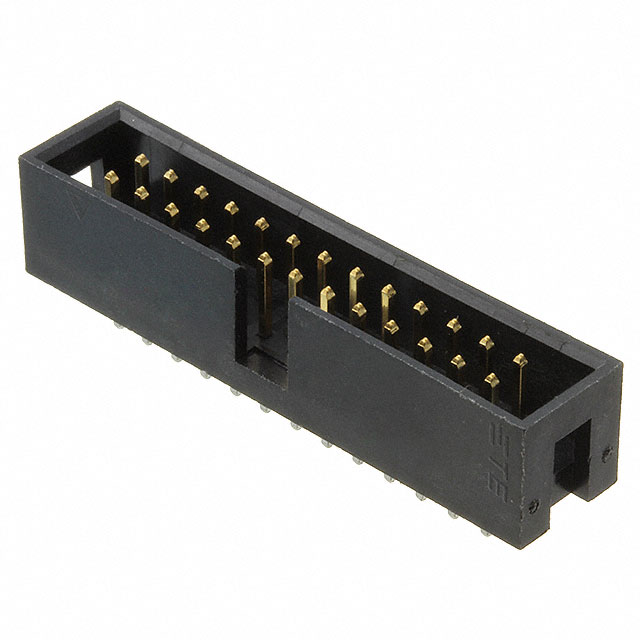

TE Connectivity Raychem Cable Protection 2-1634688-6	3.2 mm	0.126 in	0.343 in	8.71 mm	2.03 µm	80 µin	UL94 V-0	Gold	2.54 mm	0.1 in	Black	Through Hole	26	Shrouded - 4 Wall	Tin	Solder	Brass	Square	3 A	Header	-40 °C	105 ░C	Keying Slot	Board to Cable/Wire	2	Push-Pull	10 çin	0.25 çm	Male Pin	Nylon 6T Polyamide (PA6T)	All	0.228 in	5.8 mm	0.1 in	2.54 mm

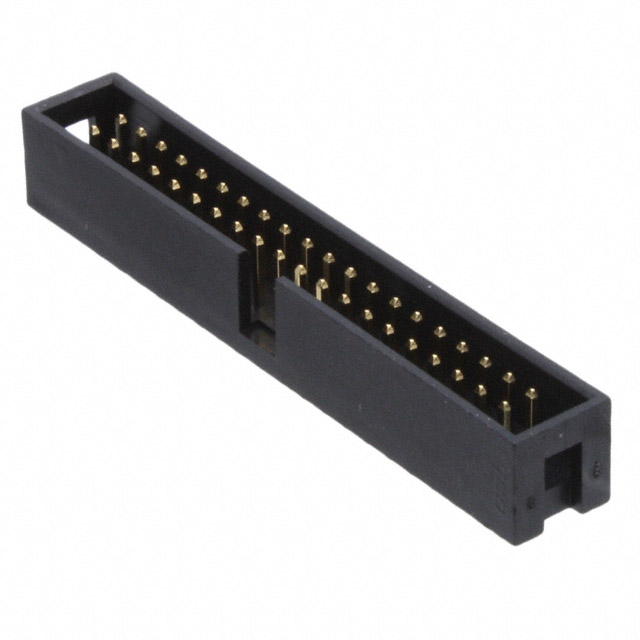

TE Connectivity Raychem Cable Protection 4-1634688-0	3.2 mm	0.126 in	0.343 in	8.71 mm	2.03 µm	80 µin	UL94 V-0	Gold	2.54 mm	0.1 in	Black	Through Hole	40	Shrouded - 4 Wall	Tin	Solder	Brass	Square	3 A	Header	-40 °C	105 ░C	Keying Slot	Board to Cable/Wire	2	Push-Pull	10 çin	0.25 çm	Male Pin	Nylon 6T Polyamide (PA6T)	All	0.228 in	5.8 mm	0.1 in	2.54 mm

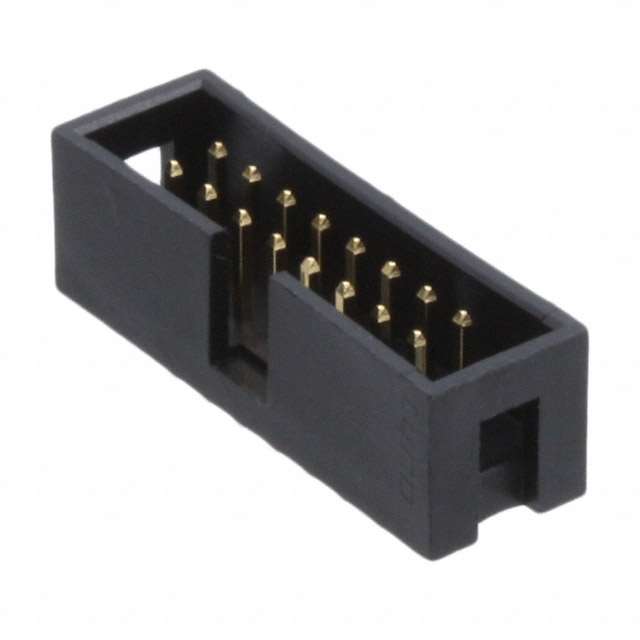

TE Connectivity Raychem Cable Protection 1-1634688-6	3.2 mm	0.126 in	0.343 in	8.71 mm	2.03 µm	80 µin	UL94 V-0	Gold	2.54 mm	0.1 in	Black	Through Hole		Shrouded - 4 Wall	Tin	Solder	Brass	Square	3 A	Header	-40 °C	105 ░C	Keying Slot	Board to Cable/Wire	2	Push-Pull	10 çin	0.25 çm	Male Pin	Nylon 6T Polyamide (PA6T)	All	0.228 in	5.8 mm	0.1 in	2.54 mm	16
