reh Series

Catalog

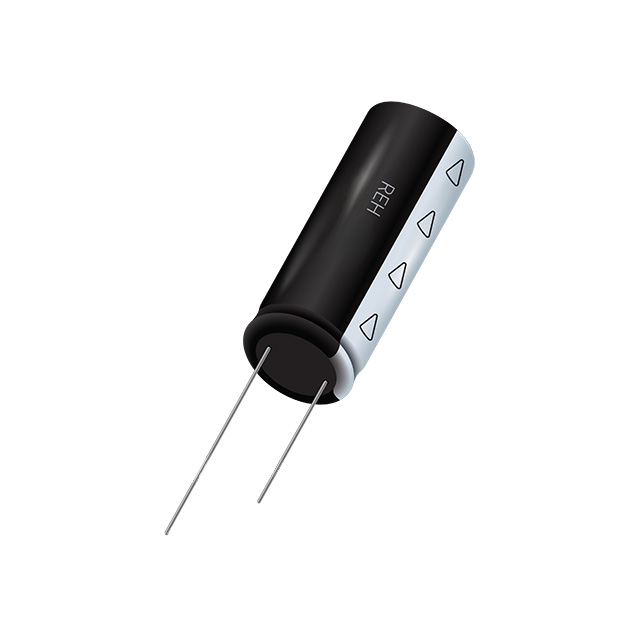

CAPACITOR: ELECTROLYTIC; THT; 2200UF; 16VDC; Ø10X25MM; ±20%; REH

Part	Package / Case	Voltage - Rated	Capacitance	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Polarization	Mounting Type
Kyocera AVX REH1025222M016K	Radial Can	16 V	2.2 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	4000 Hrs	10 mm	0.394 in	980 mA	5 mm	0.197 in	784 mA	Polar	Through Hole
Kyocera AVX REH1225222M010K	Radial Can	10 V	2.2 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	5000 Hrs	12.5 mm	0.492 in	1.43 A	5 mm	0.197 in	1.144 A	Polar	Through Hole
Kyocera AVX REH1225152M035K	Radial Can	35 V	1.5 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	5000 Hrs	12.5 mm	0.492 in	2.23 A	5 mm	0.197 in	1.6725 A	Polar	Through Hole
