GTC08 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 8POS 2.54MM

Part	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Length - Mating	Contact Length - Mating	Style	Number of Rows	Contact Type	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Contact Material	Contact Finish - Post	Contact Shape	Voltage Rating	Connector Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions GTC08SABN-M30	Black	Unshrouded	-65 ░C	125 °C	0.1 "	2.54 mm	8	Solder	100 çin	2.54 çm	0.1 in	2.54 mm	All	Push-Pull	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	0.23 in	5.84 mm	Board to Board Cable	1	Male Pin	UL94 V-0	3 A	Surface Mount	Tin-Lead	Phosphor Bronze	Tin-Lead	Square	600 V	Header
Sullins Connector Solutions GTC08SBSN-M89	Black	Unshrouded	-65 ░C	125 °C	0.1 "	2.54 mm	8	Solder	100 çin	2.54 çm	0.14 in	3.56 mm	All	Push-Pull	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	0.23 in	5.84 mm	Board to Board Cable	1	Male Pin	UL94 V-0	3 A	Right Angle Surface Mount	Tin-Lead	Phosphor Bronze	Tin-Lead	Square	600 V	Header

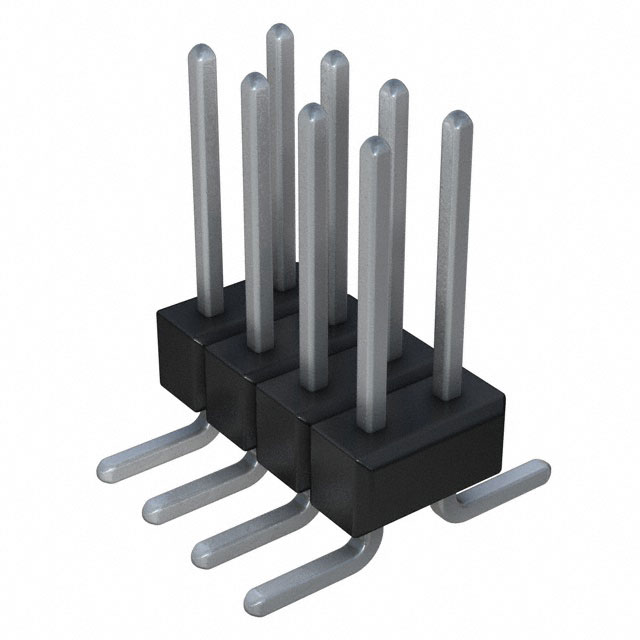

Sullins Connector Solutions GTC08DFBN-M30	Black	Unshrouded	-65 ░C	125 °C	0.1 "	2.54 mm	16	Solder	100 çin	2.54 çm	0.1 in	2.54 mm	All	Push-Pull	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	0.318 in	8.08 mm	Board to Board Cable		Male Pin	UL94 V-0	3 A	Surface Mount	Tin-Lead	Phosphor Bronze	Tin-Lead	Square	600 V	Header	2	0.1 in	2.54 mm

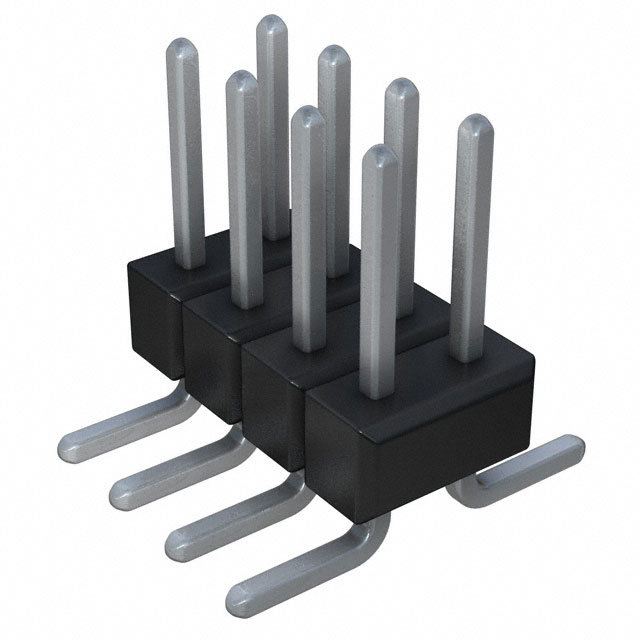

Sullins Connector Solutions GTC08DABN-M30	Black	Unshrouded	-65 ░C	125 °C	0.1 "	2.54 mm	16	Solder	100 çin	2.54 çm	0.1 in	2.54 mm	All	Push-Pull	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	0.23 in	5.84 mm	Board to Board Cable		Male Pin	UL94 V-0	3 A	Surface Mount	Tin-Lead	Phosphor Bronze	Tin-Lead	Square	600 V	Header	2	0.1 in	2.54 mm
