DRV8872-Q1 Series

Automotive 50-V, 3.6-A H-bridge motor driver with fault reporting & current regulation

Catalog

Automotive 50-V, 3.6-A H-bridge motor driver with fault reporting & current regulation

Part	Function	Motor Type - AC, DC	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Output Configuration	Package / Case [y]	Package / Case [x]	Package / Case	Motor Type - Stepper	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Technology	Mounting Type	Grade	Qualification	Contents	Utilized IC / Part	Secondary Attributes	Supplied Contents	Type	Primary Attributes
Texas Instruments DRV8872DDA	Driver - Fully Integrated Control and Power Stage	Brushed DC	6.5 V	45 V	8-SO PowerPad	Half Bridge (2)	3.9 mm	0.154 in	8-PowerSOIC	Unipolar	5.5 V	0 V	DC Motors General Purpose Stepper Motors	150 °C	-40 °C	PWM	NMOS	Surface Mount
Texas Instruments DRV8872DDARQ1	Driver - Fully Integrated Control and Power Stage	Brushed DC	6.8 V	45 V	8-SO PowerPad	Half Bridge (2)	3.9 mm	0.154 in	8-PowerSOIC	Unipolar	5.5 V	0 V		150 °C	-40 °C	PWM	NMOS	Surface Mount	Automotive	AEC-Q100

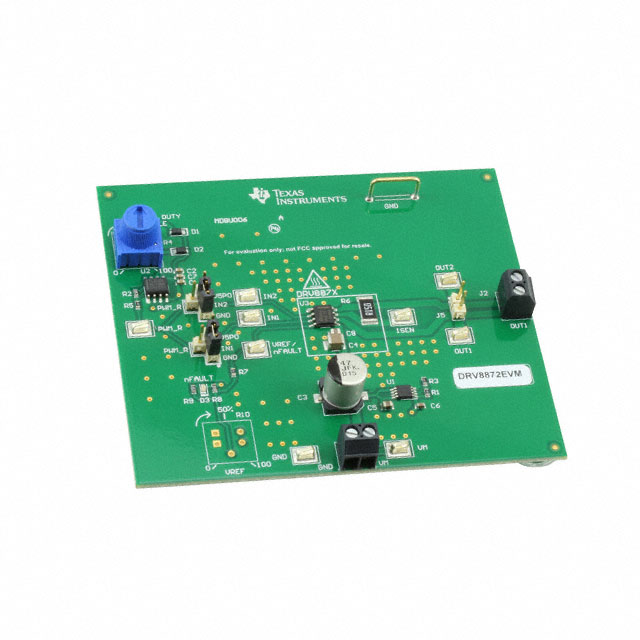

Texas Instruments DRV8872EVM	Motor Controller/Driver																				Board(s)	DRV8872	Potentiometer Speed Control	Board(s)	Power Management	Single-H-Bridge Driver
Texas Instruments DRV8872DDAR	Driver - Fully Integrated Control and Power Stage	Brushed DC	6.5 V	45 V	8-SO PowerPad	Half Bridge (2)	3.9 mm	0.154 in	8-PowerSOIC	Unipolar	5.5 V	0 V	DC Motors General Purpose Stepper Motors	150 °C	-40 °C	PWM	NMOS	Surface Mount

Catalog

Automotive 50-V, 3.6-A H-bridge motor driver with fault reporting & current regulation

Key Features

• AEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BH-Bridge Motor DriverDrives One DC Motor, One Winding of a Stepper Motor, or Other LoadsWide 6.8-V to 45-V Operating Voltage565-mΩ Typical RDS(on)(HS + LS)3.6-A Peak Current DrivePWM Control InterfaceIntegrated Current RegulationLow-Power Sleep ModeFault Status Output PinSmall Package and Footprint8-Pin HSOP With PowerPAD™4.9 × 6 mmIntegrated Protection FeaturesVM Undervoltage Lockout (UVLO)Overcurrent Protection (OCP)Thermal Shutdown (TSD)Fault Reporting (nFAULT)Automatic Fault RecoveryAEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BH-Bridge Motor DriverDrives One DC Motor, One Winding of a Stepper Motor, or Other LoadsWide 6.8-V to 45-V Operating Voltage565-mΩ Typical RDS(on)(HS + LS)3.6-A Peak Current DrivePWM Control InterfaceIntegrated Current RegulationLow-Power Sleep ModeFault Status Output PinSmall Package and Footprint8-Pin HSOP With PowerPAD™4.9 × 6 mmIntegrated Protection FeaturesVM Undervoltage Lockout (UVLO)Overcurrent Protection (OCP)Thermal Shutdown (TSD)Fault Reporting (nFAULT)Automatic Fault Recovery

Description

The DRV8872-Q1 device is a brushed DC (BDC) motor driver for infotainment, HUD projector adjustment, motorized shifter knobs, and piezo horn drivers. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that provide bidirectional control of motors up to 3.6-A peak current. The inputs can be pulse-width modulated (PWM) to control motor speed, using a choice of current-decay modes. Setting both inputs low enters a low-power sleep mode. The DRV8872-Q1 device features integrated current regulation, based on an internal reference voltage and the voltage on the ISEN pin, which is proportional to motor current through an external sense resistor. The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions. The device is fully protected from faults and short circuits, including undervoltage lockout (UVLO), overcurrent protection (OCP), and thermal shutdown (TSD). Faults are communicated by pulling the nFAULT output low. When the fault condition is removed, the device automatically resumes normal operation. The DRV8872-Q1 device is a brushed DC (BDC) motor driver for infotainment, HUD projector adjustment, motorized shifter knobs, and piezo horn drivers. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that provide bidirectional control of motors up to 3.6-A peak current. The inputs can be pulse-width modulated (PWM) to control motor speed, using a choice of current-decay modes. Setting both inputs low enters a low-power sleep mode. The DRV8872-Q1 device features integrated current regulation, based on an internal reference voltage and the voltage on the ISEN pin, which is proportional to motor current through an external sense resistor. The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions. The device is fully protected from faults and short circuits, including undervoltage lockout (UVLO), overcurrent protection (OCP), and thermal shutdown (TSD). Faults are communicated by pulling the nFAULT output low. When the fault condition is removed, the device automatically resumes normal operation.
