TSC Series

Manufacturer: OptiFuse

Catalog

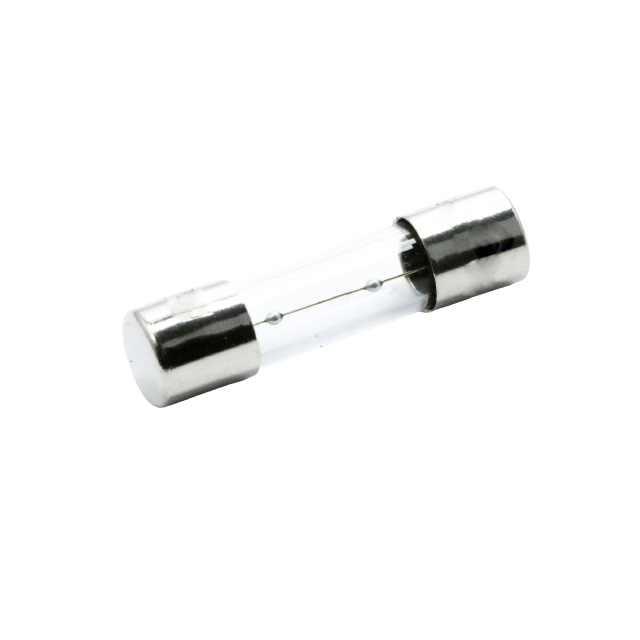

FUSE GLASS 4A 250VAC 5X20MM

Part	Melting I˛t	Melting I²t	Approval Agency	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [x]	Package / Case [y]	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]
OptiFuse TSC-4A	30.8	30.8 I²t	cULus UL 248	Slow Blow	200 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	4 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-15A	690.3	690.3	UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	15 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-1.6A	9.8	9.8	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	1.6 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-750MA	0.835	0.835	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	750 mA	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-3.15A	14.35	14.35	cULus UL 248	Slow Blow	200 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	3.15 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-250MA	0.278	0.278	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	0.25 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-500MA	1.9567	1.9567	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	0.5 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-125MA	0.04963	0.04963 I²t	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	0.125 Amps	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-3.5A		21.12	cULus UL 248	Slow Blow	200 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	3.5 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
OptiFuse TSC-630MA	0.566	0.566	cULus UL 248	Slow Blow	100 A	Cartridge Glass	-55 C	125 °C	5 mm	20 mm	250 V	0.63 A	Requires Holder	20 mm	0.205 in	0.787 "	5.2 mm
