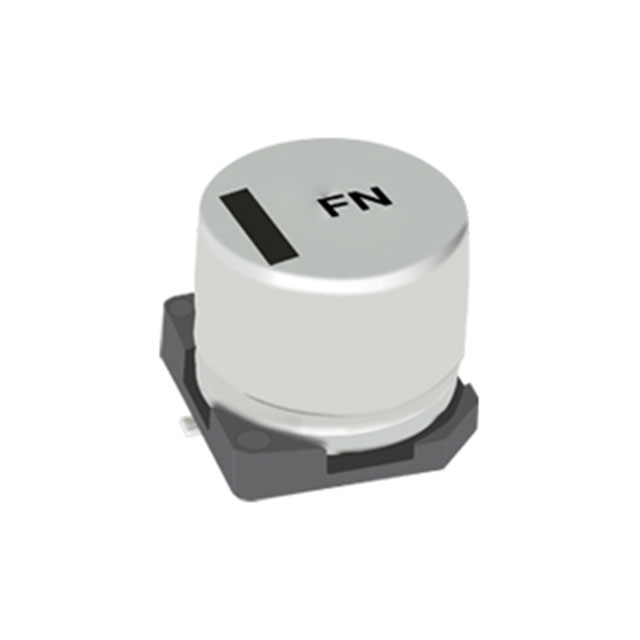

EEE-FN Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 560 ΜF, 16 V, 0.16 OHM, 2000 HOURS @ 105°C

Part	Voltage - Rated	Capacitance	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Tolerance	Ratings	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEE-FN1C561UL	16 V	560 µF	600 mA	160 mOhm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	420 mA
Panasonic Industrial Automation Sales EEE-FN1V221L	35 V	220 µF	600 mA	160 mOhm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	390 mA
Panasonic Industrial Automation Sales EEE-FN1E681UL	25 VDC	680 µF	850 mA	80 mOhm	Polar	0.394 in	10 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.406 in	10.3 mm	0.406 "	10.3 mm	Radial Can - SMD	595 mA
Panasonic Industrial Automation Sales EEE-FN1V331UL	35 V	330 µF	600 mA	160 mOhm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	390 mA
Panasonic Industrial Automation Sales EEE-FN1K470UL	80 V	47 µF	130 mA	1.3 Ohm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	84.5 mA
Panasonic Industrial Automation Sales EEE-FN1H330L	50 VDC	33 ÁF	165 mA	880 mOhm	Polar	0.248 in	6.3 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs			Surface Mount	0.26 in	6.6 mm	0.26 in	6.6 mm	Radial Can - SMD	107.25 mA	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEE-FN1A221UL	10 V	220 µF	240 mA	360 mOhm	Polar	0.248 in	6.3 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs			Surface Mount	0.26 in	6.6 mm	0.26 in	6.6 mm	Radial Can - SMD	156 mA	0.24 in	6.1 mm
Panasonic Industrial Automation Sales EEE-FN1E221L	25 VDC	220 µF	600 mA	160 mOhm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	390 mA
Panasonic Industrial Automation Sales EEE-FN2A470UL	100 V	47 µF	200 mA	700 mOhm	Polar	0.394 in	10 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.406 in	10.3 mm	0.406 "	10.3 mm	Radial Can - SMD	130 mA
Panasonic Industrial Automation Sales EEE-FN2A270UL	100 V	27 µF	130 mA	1.3 Ohm	Polar	0.315 "	8 mm	105 ░C	-55 °C	Automotive	20 %	AEC-Q200	2000 Hrs	0.413 in	10.5 mm	Surface Mount	0.327 "	8.3 mm	0.327 in	8.3 mm	Radial Can - SMD	84.5 mA
