NCP716BC Series

LDO Regulator, 150 mA, Ultra-Low Iq

Catalog

LDO Regulator, 150 mA, Ultra-Low Iq

Part	PSRR	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Protection Features	Mounting Type	Output Type	Current - Supply (Max) [Max]	Number of Regulators	Current - Output	Current - Quiescent (Iq)	Output Configuration	Supplier Device Package	Voltage Dropout (Max) [Max]	Package / Case	Operating Temperature	Utilized IC / Part	Channels per IC	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Regulator Type
ON Semiconductor NCP716MT15TBG	60 dB	24 V	-40 °C	125 ¯C	1.5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm	5.8 µA	1	80 mA	4.2 µA	Positive	6-WDFN (2x2)
ON Semiconductor NCP716MT50TBG	54 dB	24 V	-40 °C	125 ¯C	5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm	5.8 µA	1	80 mA	4.2 µA	Positive	6-WDFN (2x2)	0.5 V
ON Semiconductor NCP716MTG50TBG	54 dB	24 V	-40 °C	125 ¯C	5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm	5.8 µA	1	80 mA	4.2 µA	Positive	6-WDFN (2x2)	0.5 V
ON Semiconductor NCP716BCSN300T1G	55 dB	24 V				Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm		1	150 mA	4.7 µA	Positive	5-TSOP	1.1 V	SOT-23-5 Thin TSOT-23-5	150 °C

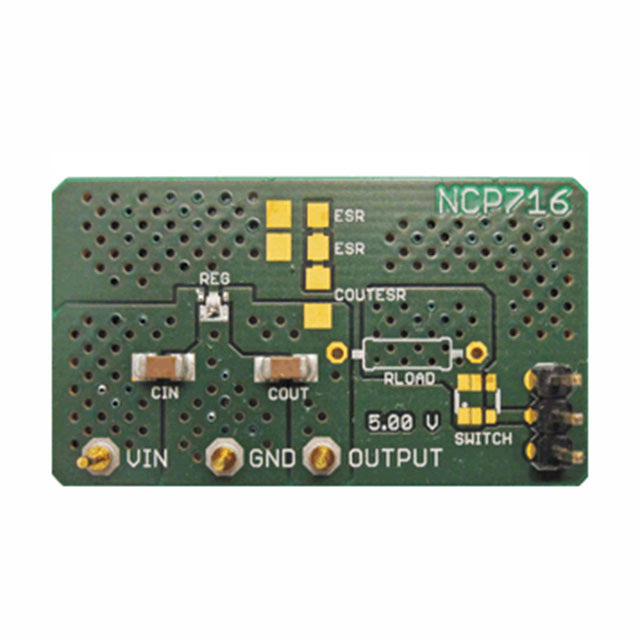

ON Semiconductor NCP716MTTBGEVB											80 mA							NCP716	1 - Single	Fully Populated	6 V	24 V	Board(s)	Positive Fixed
ON Semiconductor NCP716BCSN330T1G	54 dB	24 V			3.3 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm		1	150 mA	4.7 µA	Positive	5-TSOP	1.08 V	SOT-23-5 Thin TSOT-23-5	150 °C
ON Semiconductor NCP716BSN330T1G		24 V	-40 °C	125 ¯C	3.3 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm		1	150 mA		Positive	5-TSOP		SOT-23-5 Thin TSOT-23-5
ON Semiconductor NCP716BSN300T1G	55 dB	24 V	-40 °C	125 ¯C		Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm		1	150 mA	4.7 µA	Positive	5-TSOP	1.1 V	SOT-23-5 Thin TSOT-23-5
ON Semiconductor NCP716BCSN500T1G	53 dB	24 V			5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm		1	150 mA	4.7 µA	Positive	5-TSOP	0.955 V	SOT-23-5 Thin TSOT-23-5	150 °C
ON Semiconductor NCP716MT33TBG	60 dB	24 V	-40 °C	125 ¯C	3.3 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	1.81 mOhm	5.8 µA	1	80 mA	4.2 µA	Positive	6-WDFN (2x2)	0.56 V

Catalog

LDO Regulator, 150 mA, Ultra-Low Iq

Key Features

• Wide Input Voltage Range: Up to 24V

• Ultra-Low Quiescent current: 3.2uA Typical

• Fixed Output Voltage Options: from 1.5V to 5.0V

• Power Supply Rejection Ratio: 55dB @ 100kHz

• Package: TSOP-5 / SOT-23-5

Description

The NCP716B is 150 mA LDO Linear Voltage Regulator. It is a verystable and accurate device with ultra−low ground current consumption(4.7 uA over the full output load range) and a wide input voltage range(up to 24 V). The regulator incorporates several protection featuressuch as Thermal Shutdown and Current Limiting, Short Circuit Protection. The NCP716B is an ideal choice for Portable Devices with Low Standby Current Requirements.
