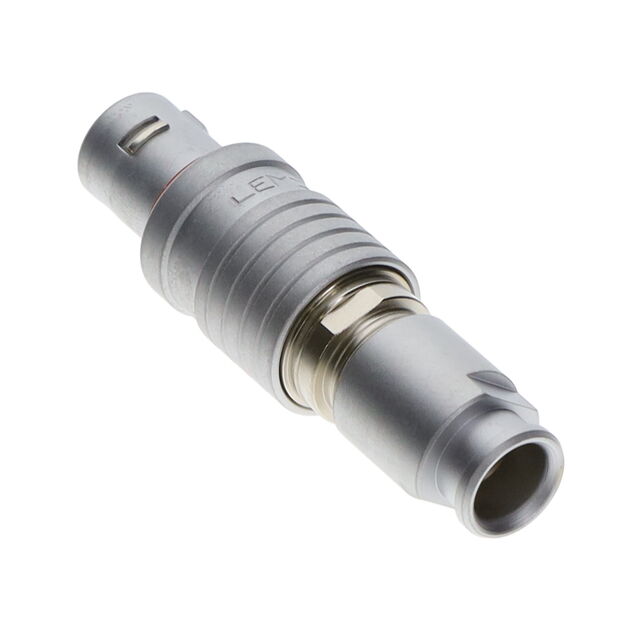

FEG.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 14P GOLD SLDR CUP

Part	Ingress Protection	Insert Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Backshell Material, Plating	Mounting Type	Shielding	Features	Shell Finish	Material Flammability Rating	Contact Material	Orientation [custom]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Contact Finish - Mating	Color	Primary Material	Connector Type	Current Rating (Amps)	Cable Opening [Min]	Cable Opening [Max]	Termination	Shell Size - Insert [custom]
LEMO FEG.1B.314.CLAD72Z	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	14	Brass	-55 C	250 °C	314	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	7.2 mm	0.244 in	6.2 mm	0.283 in	Gold	Silver	Metal	Plug Male Pins	2 A
LEMO FEG.1B.302.CLAD62	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	2	Brass	-55 C	250 °C	302	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	6.2 mm		5.2 mm		Gold	Silver	Metal	Plug Male Pins	15 A	0.205 in	0.244 "
LEMO FEG.1B.314.CLAD62	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	14	Brass	-55 C	250 °C	314	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	6.2 mm		5.2 mm		Gold	Silver	Metal	Plug Male Pins	2 A	0.205 in	0.244 "
LEMO FEG.1B.310.CYCD42	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	10	Brass	-55 C	250 °C	310	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	4.2 mm		3.1 mm		Gold	Silver	Metal	Plug Male Pins	2.5 A	0.122 in	0.165 in	Crimp
LEMO FEG.1B.310.CLAD76	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	10	Brass	-55 C	250 °C	310	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	7.6 mm		7.2 mm		Gold	Silver	Metal	Plug Male Pins	2.5 A	0.283 "	0.299 in
LEMO FEG.1B.305.CLAD52Z	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	5	Brass	-55 C	250 °C	305	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	5.2 mm		4.2 mm		Gold	Silver	Metal	Plug Male Pins	9 A	0.165 "	0.205 in
LEMO FEG.1B.307.CYCD42Z	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	7	Brass	-55 C	250 °C		Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	4.2 mm		3.1 mm		Gold	Silver	Metal	Plug Male Pins	7 A	0.122 in	0.165 in	Crimp	307
LEMO FEG.1B.307.CYCD42	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	7	Brass	-55 C	250 °C		Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	4.2 mm		3.1 mm		Gold	Silver	Metal	Plug Male Pins	7 A	0.122 in	0.165 in	Crimp	307
LEMO FEG.1B.308.CLAD62	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	8	Brass	-55 C	250 °C	308	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	6.2 mm		5.2 mm		Gold	Silver	Metal	Plug Male Pins	5 A	0.205 in	0.244 "
LEMO FEG.1B.302.CLAD52Z	IP54 - Dust Protected Water Resistant	Polyetheretherketone (PEEK)	39.4 µin	1 µm	Push-Pull	2	Brass	-55 C	250 °C	302	Brass Chrome	Free Hanging (In-Line)	Shielded	Backshell	Chrome	UL94 V-0	Brass	G	5.2 mm		4.2 mm		Gold	Silver	Metal	Plug Male Pins	15 A	0.165 "	0.205 in
