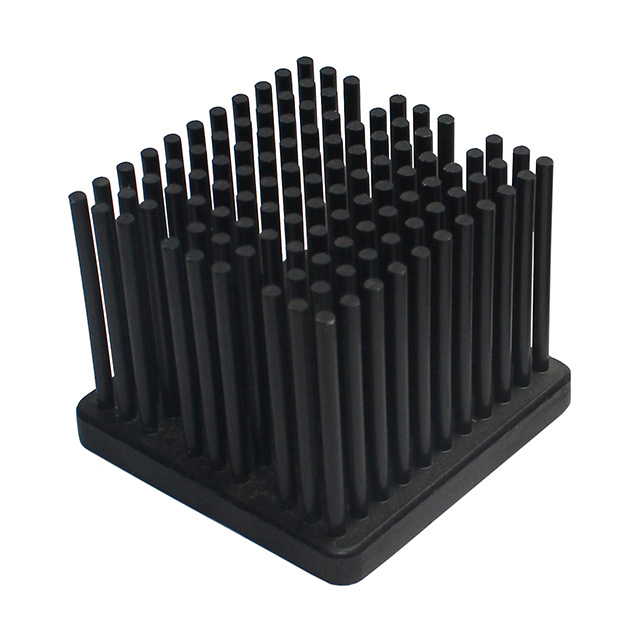

APR38 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Thermal Resistance @ Forced Air Flow	Attachment Method	Type	Shape	Package Cooled	Length	Length	Material	Material Finish	Fin Height	Fin Height	Width [x]	Width [x]	Thermal Resistance @ Natural	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Length [x]	Length [x]	Fin Height [custom]
CTS Thermal Management Products APR38-38-21CB/A01	24 Months	2.41 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized	0.811 in	20.6 mm	1.476 in	37.5 mm	9.13 °C/W
CTS Thermal Management Products APR38-38-18CB/A01	24 Months	2.66 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized			1.476 in	37.5 mm	9.43 °C/W	0.772 in	19.6 mm
CTS Thermal Management Products APR38-38-28CB/A01	24 Months	2 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized			1.476 in	37.5 mm	7.73 °C/W	1.087 in	27.6 mm
CTS Thermal Management Products APR38-38-15CB/A01	24 Months	2.85 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized		14.6 mm	1.476 in	37.5 mm	9.73 °C/W			0.575 in
CTS Thermal Management Products APR38-38-23CB/A01	24 Months	2.21 °C/W 200 LFM	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized			1.476 in	37.5 mm	8.23 °C/W				22.61 mm	0.89 in

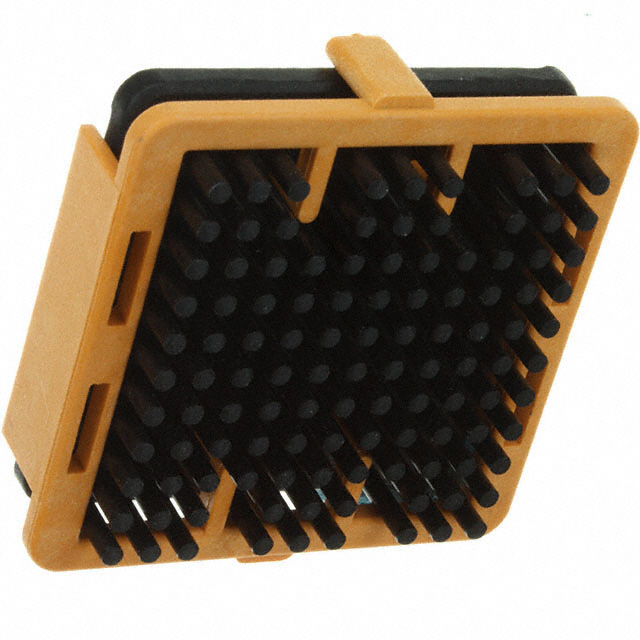

CTS Thermal Management Products APR38-38-12CB/S		3.3 °C/W	Clip	Top Mount	Pin Fins Square	ASIC BGA CPU LGA			Aluminum	Black Anodized			1.461 in	37.1 mm				0.457 in			1.461 in	37.1 mm	11.6 mm

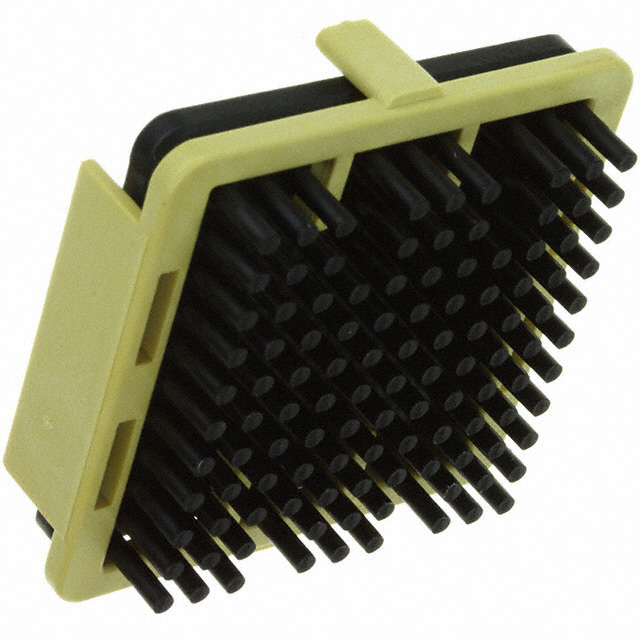

CTS Thermal Management Products APR38-38-12CB/T		3.3 °C/W	Clip	Top Mount	Pin Fins Square	ASIC BGA CPU LGA			Aluminum	Black Anodized			1.461 in	37.1 mm				0.457 in			1.461 in	37.1 mm	11.6 mm

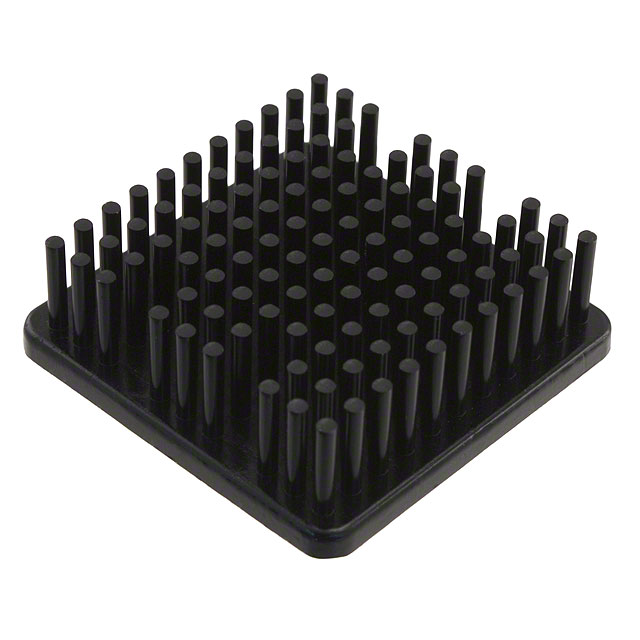

CTS Thermal Management Products APR38-38-12CB/A01	24 Months	3.3 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA			Aluminum	Black Anodized			1.461 in	37.1 mm				0.457 in			1.461 in	37.1 mm	11.6 mm
CTS Thermal Management Products APR38-38-33CB/A01	24 Months	1.8 °C/W	Thermal Tape Adhesive (Included)	Top Mount	Pin Fins Square	ASIC BGA CPU LGA	37.5 mm	1.476 in	Aluminum Alloy	Black Anodized	1.283 in	32.6 mm	1.476 in	37.5 mm	7.13 °C/W
