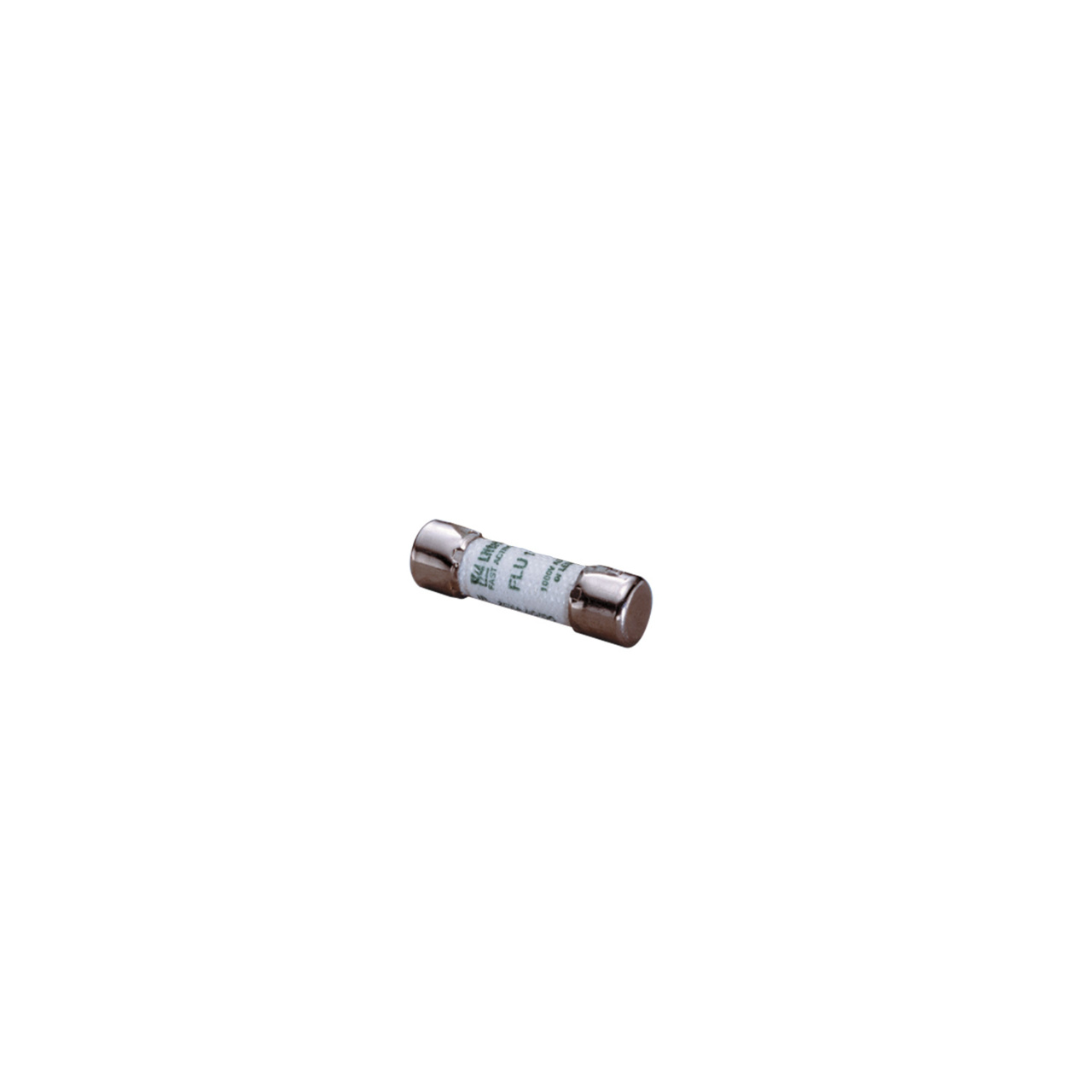

FLU011 Series

FUS 1000V AC/DC QUICK ACTING METER FUSE

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

FUS 1000V AC/DC QUICK ACTING METER FUSE

Part	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - DC	Package / Case	Package / Case [y]	Package / Case [x]	Current Rating (Amps)	Approval Agency	Response Time	Fuse Type	Breaking Capacity @ Rated Voltage	Mounting Type	Voltage Rating - AC	Applications
Littelfuse/Commercial Vehicle Products 0FLU011.T	0.406 in	38.1 mm	1.5 in	10.31 mm	1 kVDC	5AG	38 mm	10 mm	11 A	CSA UR	Fast Blow	Cartridge	20 kA	Requires Holder	1 kVAC	Multi-Meters
Littelfuse/Commercial Vehicle Products 0FLU011.U	0.406 in	38.1 mm	1.5 in	10.31 mm	1 kVDC	Cartridge Non-Standard			11 A	CSA UR	Fast Blow	Cartridge	20 kA	Requires Holder	1 kVAC	Multi-Meters
Littelfuse/Commercial Vehicle Products 0FLU011.M	0.406 in	38.1 mm	1.5 in	10.31 mm	1 kVDC	Cartridge Non-Standard			11 A	CSA UR	Fast Blow	Cartridge	20 kA	Requires Holder	1 kVAC	Multi-Meters

Catalog

FUS 1000V AC/DC QUICK ACTING METER FUSE

Description

The Littelfuse FLU series is designed specifically for the protection of multimeters. The 1000 VAC/VDC rating also makes the FLU ideal for a variety of other applications.
