1743399 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

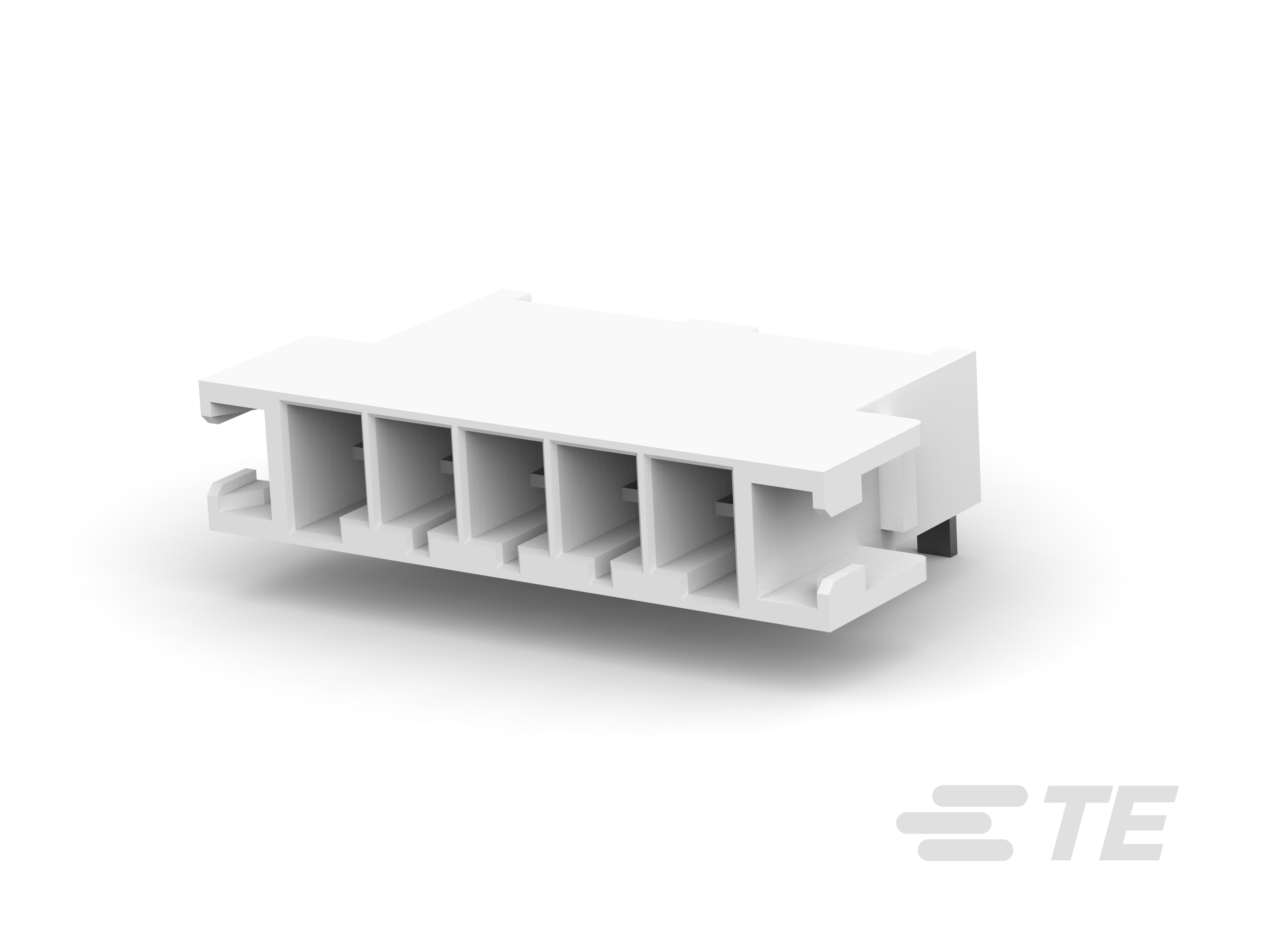

HALL SENSOR 5P HDR ASSY
| Part | Number of Positions Loaded | Style | Material Flammability Rating | Insulation Material | Shrouding | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Shape | Fastening Type | Connector Type | Mounting Type | Termination | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Insulation Height | Insulation Height | Insulation Color | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Board to Cable/Wire | UL94 V-0 | Polyamide (PA66) Nylon 6/6 | Shrouded - 4 Wall | Brass | 1 µm | 39.4 µin | 0.163 in | 4.15 mm | Rectangular | Latch Holder | Header | Through Hole Right Angle | Solder | 3 A | -30 ░C | 105 ░C | 1 | Tab | 6 mm | 0.236 in | Natural | 0.108 in | 2.75 mm |
