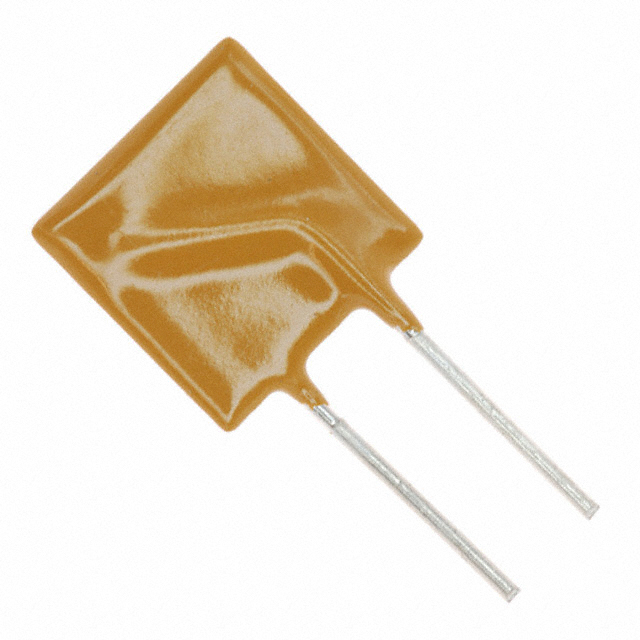

MF-R250 Series

Catalog

PTC RESET FUSE 30V 2.5A RADIAL

Part	Approval Agency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Trip (It)	Time to Trip	Lead Spacing	Lead Spacing	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Post Trip (R1) (Max) [Max] [custom]	Type	Voltage - Max [Max]	Current - Hold (Ih) (Max)	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Mounting Type
Bourns Inc. MF-R250U-2	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250U	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-0-10	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-AP	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-0-010	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-2	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-AP-10-99	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-2-99	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-AP-99	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
Bourns Inc. MF-R250-0-10-99	cURus TUV	18.3 mm	0.72 in	85 °C	-40 C	5 A	10.3 s	0.201 in	5.1 mm	40 A	0.118 in	12 mm	3 mm	0.472 in	70 mOhms	Polymeric	30 V	2.5 A	Disc Radial	25 mOhms	Through Hole
