PM13560S Series

Catalog

FIXED IND 10UH 7.5A 14.9MOHM SMD

Part	Shielding	Package / Case	Current Rating (Amps)	Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material - Core	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. PM13560S-100M	Shielded	Nonstandard	7.5 A	Drum Core Wirewound	20 %	-40 C	150 °C	Surface Mount	Iron	10 µH	0.547 in	13.9 mm	0.531 in	13.5 mm	14.9 mOhm	0.232 "	5.9 mm	100 kHz
Bourns Inc. PM13560S-6R0M	Shielded	Nonstandard	9.5 A	Drum Core Wirewound	20 %	-40 C	150 °C	Surface Mount	Iron	6 ÁH	0.547 in	13.9 mm	0.531 in	13.5 mm	10.7 mOhm	0.232 "	5.9 mm	100 kHz

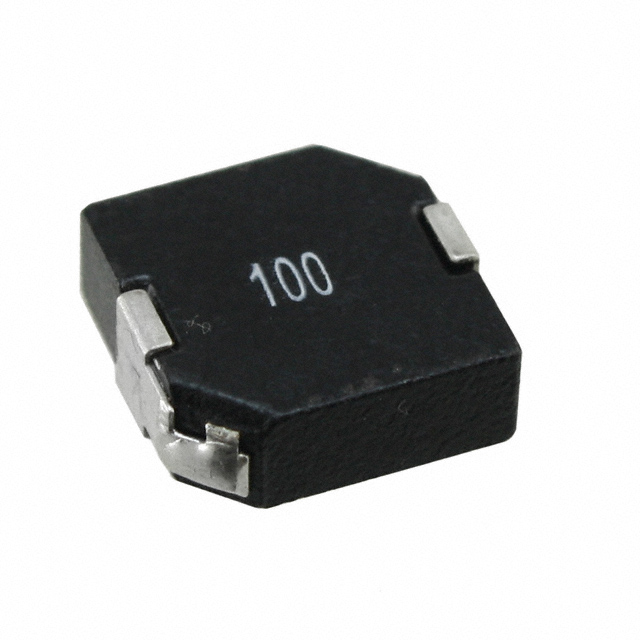

Bourns Inc. PM13560S-100M-RC	Shielded	Nonstandard	9 A	Drum Core Wirewound	20 %	-55 C	150 °C	Surface Mount	Iron	10 µH	0.547 in	13.9 mm	0.531 in	13.5 mm		0.232 "	5.9 mm	100 kHz	16 A	25.5 mOhm
