SMB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS VERT JACK SMB PCB
| Part | Mating Cycles | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Housing Color | Contact Termination | Frequency - Max [Max] | Connector Type | Fastening Type | Connector Style | Number of Ports | Impedance | Shield Termination | Center Contact Material | Mounting Type | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

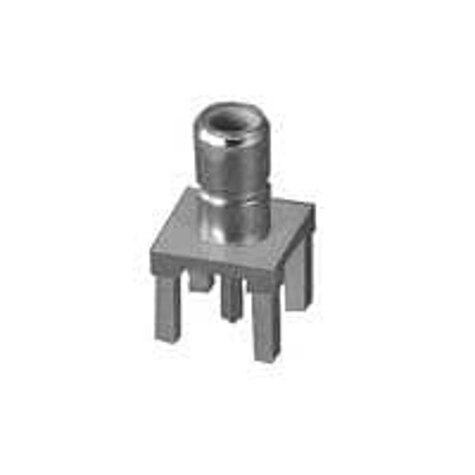

 TE Connectivity AMP Connectors | 500 | Brass | Polytetrafluoroethylene (PTFE) | Nickel | Gold | 0.3 dB | -65 ░C | 165 °C | 335 V | Silver | Solder | 4 GHz | Jack Male Pin | Snap-On | SMB | 1 | 50 Ohms | Solder | Brass | Through Hole | ||

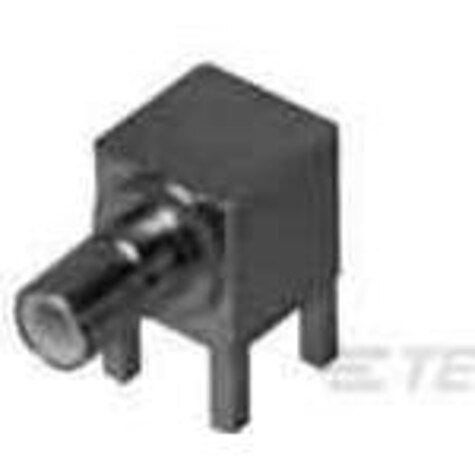

 TE Connectivity AMP Connectors | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 750 VDC | Gold | Solder | 4 GHz | Jack Male Pin | Snap-On | SMB | 1 | 50 Ohms | Solder | Brass | Right Angle Through Hole | |||
 TE Connectivity AMP Connectors | Silver | Crimp | 4 GHz | Female Socket Plug | Snap-On | Mini SMB | 1 | 75 Ohms | Crimp | Beryllium Copper | Free Hanging (In-Line) | RG-179 | ||||||||||
 TE Connectivity AMP Connectors | Gold | Solder | 4 GHz | Jack Male Pin | Snap-On | SMB | 1 | 50 Ohms | Solder | Brass | Right Angle Through Hole | |||||||||||
 TE Connectivity AMP Connectors | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 750 VDC | Gold | Crimp | 12 GHz | Female Socket Plug | Snap-On | SMB | 1 | 50 Ohms | Crimp | Beryllium Copper | Free Hanging (In-Line) Right Angle | RG-174 | 316 |
