FR01KR16 Series

Catalog

ROTARY SWITCH, 16 POSITION, 1 POLE

Part	Electrical Life	Mechanical Life	Length [x]	Length [x]	Body Material	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Actuator Type	Current Rating (Amps)	Mounting Type	Contact Finish	Termination Style	Actuator Level	Circuit	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01KR16P-S	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	16	5 V	85 °C	-25 °C	Copper Alloy	Rotary with Shaft	100 mA	Through Hole	Gold	PC Pin	Raised	Hexadecimal	2.54 mm	0.1 "	0.426 in	10.82 mm

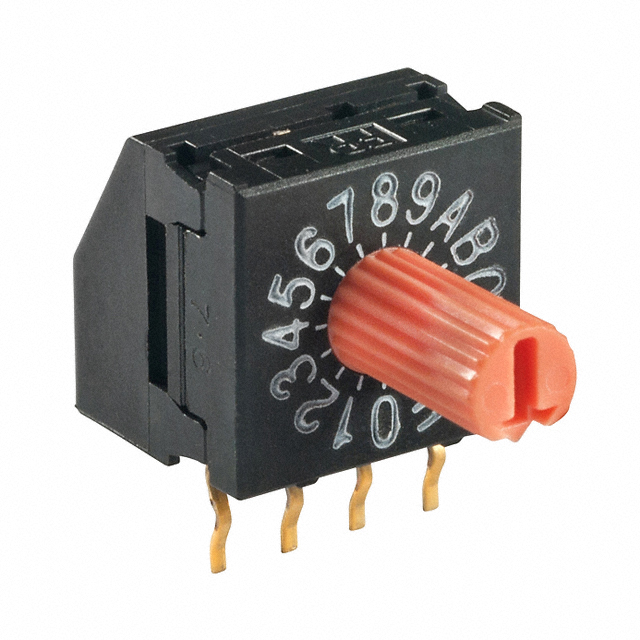

NKK Switches FR01KR16H-06XL	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	16	5 V	85 °C	-25 °C	Copper Alloy	Rotary with Shaft	100 mA	Right Angle Through Hole	Gold	PC Pin	Raised	Hexadecimal	2.54 mm	0.1 "	0.394 in	10 mm

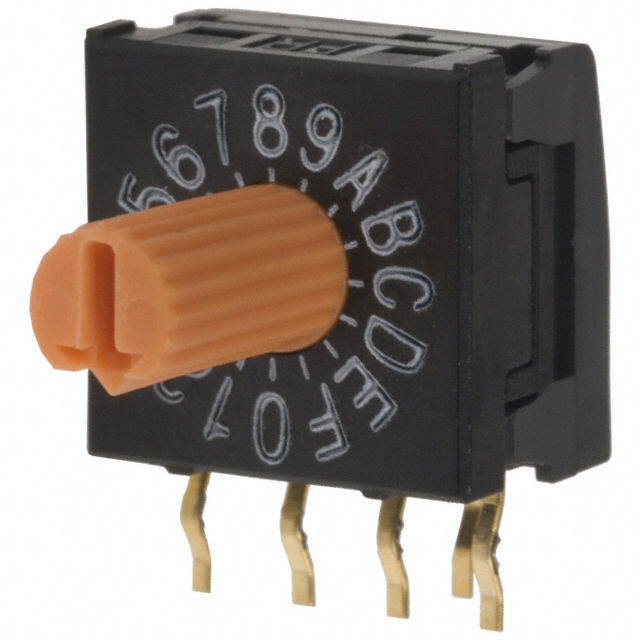

NKK Switches FR01KR16H-S	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	16	5 V	85 °C	-25 °C	Copper Alloy	Rotary with Shaft	100 mA	Right Angle Through Hole	Gold	PC Pin	Raised	Hexadecimal	2.54 mm	0.1 "	0.394 in	10 mm
NKK Switches FR01KR16P	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	16	5 V	85 °C	-25 °C	Copper Alloy	Rotary with Shaft	100 mA	Through Hole	Gold	PC Pin	Raised	Hexadecimal	2.54 mm	0.1 "	0.426 in	10.82 mm

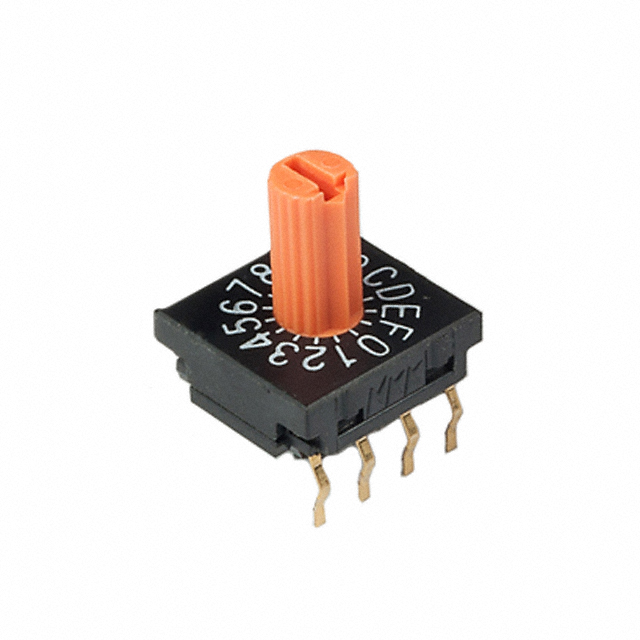

NKK Switches FR01KR16P-W-S	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyamide (PA) Nylon Glass Filled	16	5 V	85 °C	-25 °C	Copper Alloy	Rotary with Shaft	100 mA	Through Hole	Gold	PC Pin	Raised	Hexadecimal	2.54 mm	0.1 "	0.426 in	10.82 mm
