PXM7011 Series
Manufacturer: BULGIN LIMITED
Catalog

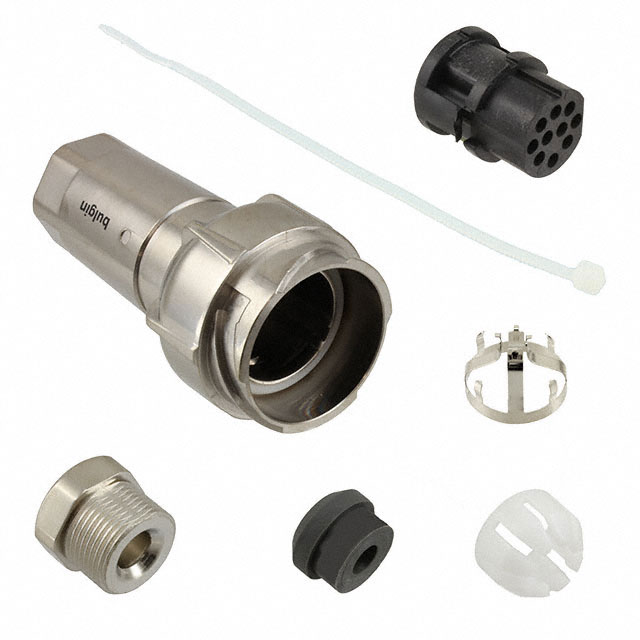

CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, ZINC BODY
| Part | Type | Shell Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Features | Shell Finish | Number of Positions | Fastening Type | Mounting Type | Shielding | Primary Material | Housing Color | Connector Type | Contact Type | Orientation | Note | Color | Contact Material | Cable Opening [Min] | Cable Opening [Max] | Contact Finish - Mating | Voltage Rating | Termination | Current Rating (Amps) | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | For Female Sockets | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 32 | Bayonet Lock | Free Hanging (In-Line) | Unshielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
 BULGIN LIMITED | For Female Sockets | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 10 | Bayonet Lock | Free Hanging (In-Line) | Shielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
 BULGIN LIMITED | For Female Sockets | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 32 | Bayonet Lock | Free Hanging (In-Line) | Unshielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
BULGIN LIMITED | For Male Pins | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 10 | Bayonet Lock | Free Hanging (In-Line) | Unshielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
 BULGIN LIMITED | For Female Sockets | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 10 | Bayonet Lock | Free Hanging (In-Line) | Shielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
BULGIN LIMITED | For Male Pins | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 32 | Bayonet Lock | Free Hanging (In-Line) | Unshielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
BULGIN LIMITED | For Male Pins | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 32 | Bayonet Lock | Free Hanging (In-Line) | Shielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
BULGIN LIMITED | For Male Pins | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 32 | Bayonet Lock | Free Hanging (In-Line) | Shielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included | |||||||||
BULGIN LIMITED | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Backshell | Nickel | 2 | Bayonet Lock | Free Hanging (In-Line) | Unshielded | Metal | Receptacle Female Sockets | Keyed | Silver | Brass | 0.276 " 7 mm | 0.354 in 9 mm | Nickel | 600 V | Screw | 25 A | Nickel Zinc Alloy | |||||
 BULGIN LIMITED | For Male Pins | Zinc Alloy | IP66 IP68 IP69K | 120 °C | -40 C | Circular | Backshell | Nickel | 10 | Bayonet Lock | Free Hanging (In-Line) | Shielded | Metal | Silver | Receptacle Housing | Crimp and Solder Cup | Keyed | Contacts Not Included |
