APTD1608 Series

Catalog

LED GREEN CLEAR CHIP SMD

Part	Color	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Current - Test	Lens Color	Viewing Angle	Height (Max) [z]	Lens Transparency	Lens Style	Lens Size [diameter]	Configuration	Supplier Device Package	Package / Case	Package / Case	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
Kingbright APTD1608CGCK	Green	Surface Mount	1.6 mm	0.8 mm	190 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	Chip LED	1608 Metric	0603	570 nm	2.1 V
Kingbright APTD1608VBC/D	Blue	Surface Mount	1.6 mm	0.8 mm	350 mcd	20 mA	Colorless	40 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	Chip LED	1608 Metric	0603	470 nm	3.3 V	465 nm
Kingbright APTD1608SYCK	Yellow	Surface Mount	1.6 mm	0.8 mm	450 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	Chip LED	1608 Metric	0603	590 nm	2 V	590 nm
Kingbright APTD1608SECK/J3-PF	Red	Surface Mount	1.6 mm	0.8 mm	800 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	2-SMD	1608 Metric	0603	625 nm	2.2 V	640 nm
Kingbright APTD1608SEC/J3	Red	Surface Mount	1.6 mm	0.8 mm	900 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	Chip LED	1608 Metric	0603	625 nm	2.2 V	640 nm
Kingbright APTD1608LVBC/D	Blue	Surface Mount	1.6 mm	0.8 mm	65 mcd	2 mA	Colorless	40 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	2-SMD	1608 Metric	0603	470 nm	2.65 V	465 nm
Kingbright APTD1608LQBC/D	Blue	Surface Mount	1.6 mm	0.8 mm	20 mcd	2 mA	Colorless	40 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	1608	1608 Metric	0603	465 nm	2.65 V	460 nm
Kingbright APTD1608SYCK/J3-PF	Yellow	Surface Mount	1.6 mm	0.8 mm	800 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	2-SMD	1608 Metric	0603	590 nm	2 V	590 nm
Kingbright APTD1608LSECK/J3-PF	Red	Surface Mount	1.6 mm	0.8 mm	50 mcd	2 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	2-SMD	1608 Metric	0603	625 nm	1.8 V	640 nm

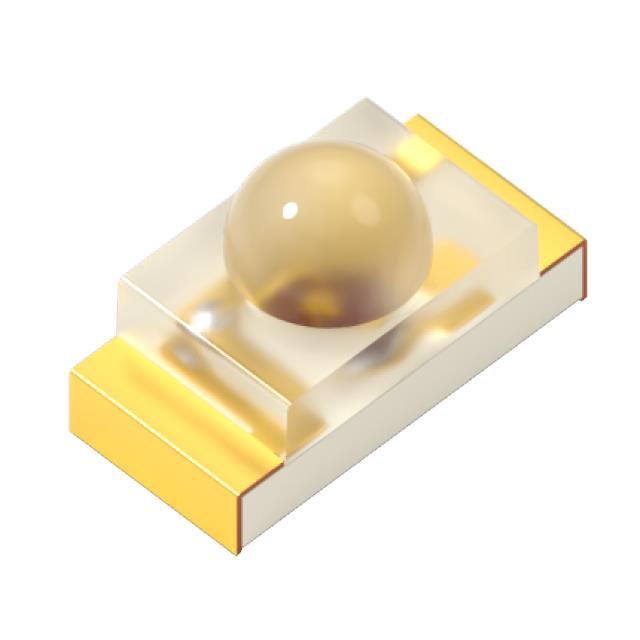

Kingbright APTD1608SURCK	Red	Surface Mount	1.6 mm	0.8 mm	250 mcd	20 mA	Colorless	60 °	1.1 mm	Clear	Round with Domed Top	0.7 mm	Standard	Chip LED	1608 Metric	0603	630 nm	1.95 V	645 nm
