BAT54 Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

SCHOTTKY DIODES & RECTIFIERS 30V, 0.2A, SCHOTTKY DIODE

Part	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Reverse Recovery Time (trr)	Technology	Speed	Speed	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Taiwan Semiconductor Corporation BAT54 RFG	SOT-23	200 mA	30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed	10 pF	1 V	2 çA	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C
Taiwan Semiconductor Corporation BAT54CD REG	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	125 °C	2 Pair Common Cathode	200 mA
Taiwan Semiconductor Corporation BAT54C RFG	SOT-23		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	1 Pair Common Cathode	200 mA
Taiwan Semiconductor Corporation BAT54AD	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	125 °C	2 Pair Common Anode	200 mA

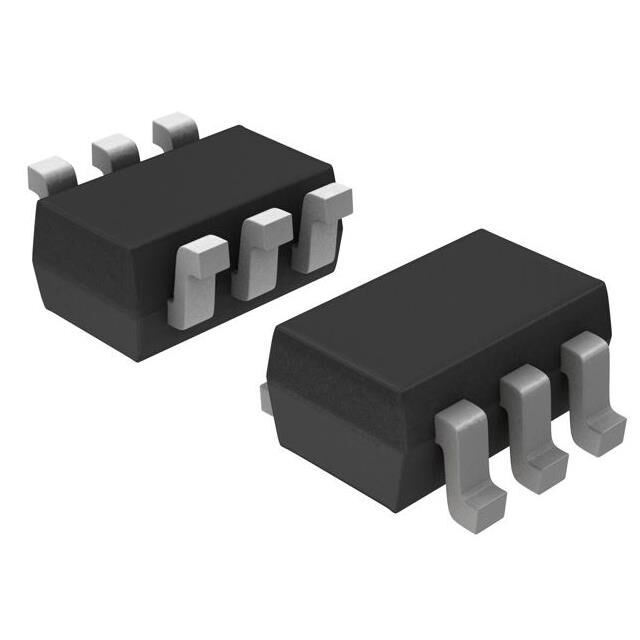

Taiwan Semiconductor Corporation BAT54T REG	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	125 °C	3 Independent	200 mA
Taiwan Semiconductor Corporation BAT54BR-G REG	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	150 °C	2 Pair Series Connection	200 mA
Taiwan Semiconductor Corporation BAT54AD-G	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	150 °C	2 Pair Common Anode	200 mA
Taiwan Semiconductor Corporation BAT54AD REG	SOT-363		30 V	Surface Mount	5 ns	Schottky	200 mA	Any Speed		1 V	2 çA	6-TSSOP SC-88 SOT-363	-65 C	125 °C	2 Pair Common Anode	200 mA
