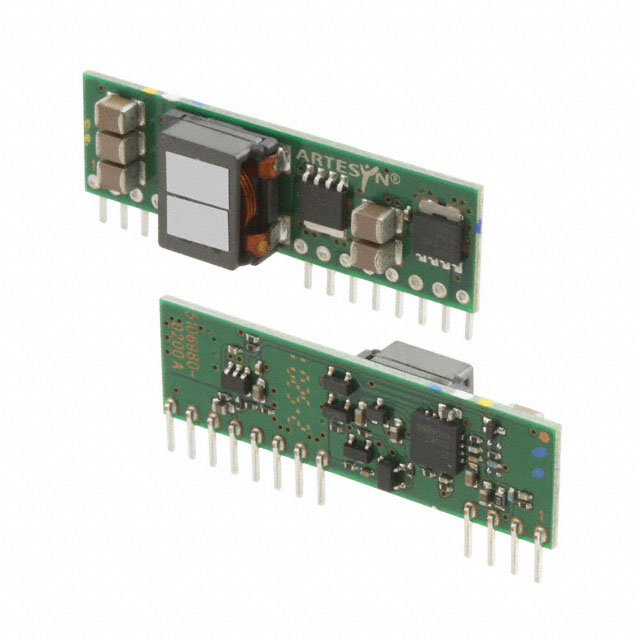

PTV12020 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 1.2-5.5V 88W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Applications | Number of Outputs | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Features | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Mounting Type | Package / Case | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 85 °C | -40 C | 94 % | ITE (Commercial) | 1 | Non-Isolated PoL Module | 44.5 mm | 0.5 in | 0.37 in | 12.7 mm | 1.75 " | 9.4 mm | 10.8 V | 16 A | OCP OTP Remote On/Off UVLO | 13.2 V | 88 W | 1.2 V | 5.5 V | Through Hole | 12-SIP Module | ||
ARTESYN / Advanced Energy | 85 °C | -40 C | 89 % | ITE (Commercial) | 1 | Non-Isolated PoL Module | 44.5 mm | 0.5 in | 0.37 in | 12.7 mm | 1.75 " | 9.4 mm | 10.8 V | 16 A | OCP OTP Remote On/Off UVLO | 13.2 V | 28.8 W | Through Hole | 12-SIP Module | 0.8 V | 1.8 V |
