TUSB213-Q1 Series

Automotive USB 2.0 high speed signal conditioner with DC boost

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost

Part	Supplier Device Package	Package / Case	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Mounting Type	Qualification	Grade	Function	Supplied Contents	Utilized IC / Part	Secondary Attributes	Type	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Protocol	Current - Supply
Texas Instruments TUSB213RGYR	14-VQFN (3.5x3.5)	14-VFQFN Exposed Pad	USB	4.4 V	5.5 V	Signal Processing	Surface Mount
Texas Instruments TUSB213QRGYRQ1	14-VQFN (3.5x3.5)	14-VFQFN Exposed Pad	USB	4.4 V	5.5 V	Signal Processing	Surface Mount	AEC-Q100	Automotive

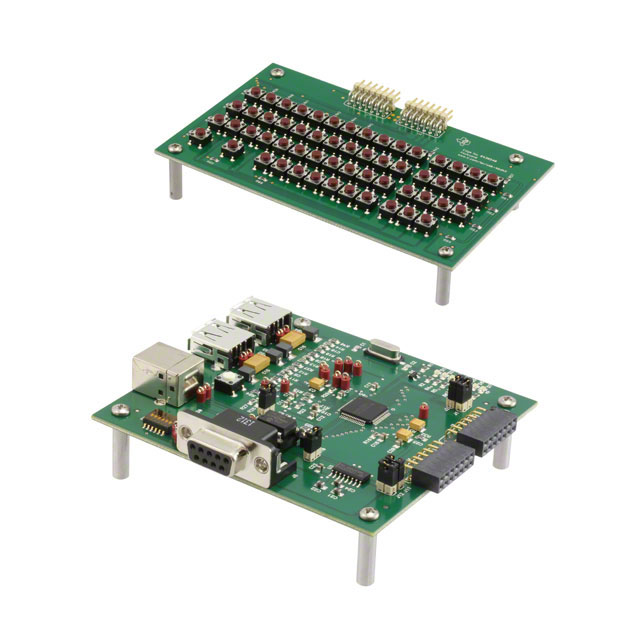

Texas Instruments TUSB2136TPS2149PDK										USB	Board(s)	TPS2149 TUSB2136	On-Board LEDs	Interface
Texas Instruments TUSB213IRGYR	14-VQFN (3.5x3.5)	14-VFQFN Exposed Pad	USB	4.4 V	5.5 V	Signal Processing	Surface Mount
Texas Instruments TUSB2136PM	64-LQFP (10x10)	64-LQFP	USB	3 V	3.6 V					Hub Controller					70 °C	0 °C	USB 2.0	USB	25 mA
Texas Instruments TUSB213RGYT	14-VQFN (3.5x3.5)	14-VFQFN Exposed Pad	USB	4.4 V	5.5 V	Signal Processing	Surface Mount

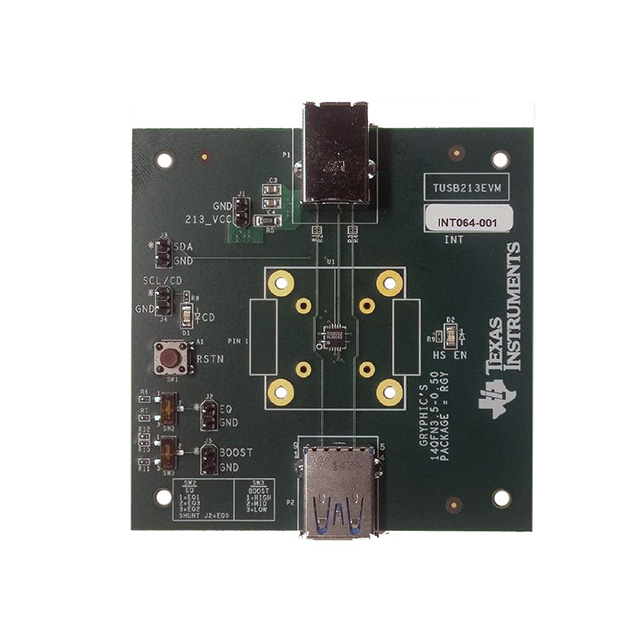

Texas Instruments TUSB213EVM										Signal Conditioner	Board(s)	TUSB213		Interface
Texas Instruments TUSB213IRGYT	14-VQFN (3.5x3.5)	14-VFQFN Exposed Pad	USB	4.4 V	5.5 V	Signal Processing	Surface Mount

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified with the Following ResultsDevice Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C ConfigurableSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionScalable solution - Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Setting Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal IntegrityQualified for Automotive ApplicationsAEC-Q100 Qualified with the Following ResultsDevice Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C ConfigurableSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionScalable solution - Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Setting Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal Integrity

Description

The TUSB213-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel which helps passing USB electrical compliance tests. TUSB213-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB213-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector, this allows use in many different applications. In addition, TUSB213-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols. The TUSB213-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel which helps passing USB electrical compliance tests. TUSB213-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB213-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector, this allows use in many different applications. In addition, TUSB213-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols.
