3073F Series
Manufacturer: Belden Inc.
Beta
⌘K

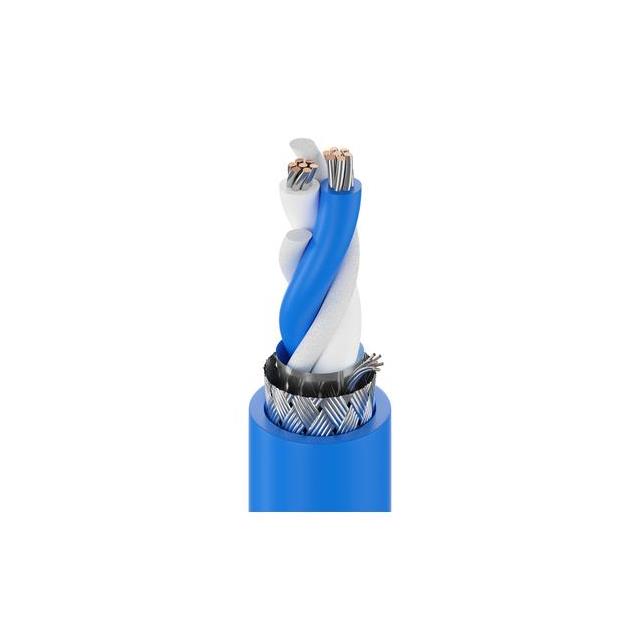

CABLE 2CON 18AWG BLUE SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Insulation | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Multi-Conductor | Braid Foil | 9.86 mm | 0.388 " | Copper Tinned | 18 AWG | -40 C | 75 ░C | 2 | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Polyolefin | PO | Drain Wire | 26 AWG | 7 | Blue | 600 V |
