FMA28 Series

Manufacturer: ConductRF

Catalog

CBL ASSY SMA PLUG TO PLUG 5'

Part	Frequency - Max [Max]	Connector Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	Features	Length	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Overall Impedance	1st Connector	Color	2nd Contact Gender	Style	2nd Connector	1st Contact Gender	Length [x]	Length [x]
ConductRF FMA28-S1S1-S60	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded	60 in	1.5 m	5 ft	-55 C	125 °C	50 Ohms	SMA Plug	Gray	Male	SMA to SMA	SMA Plug	Male

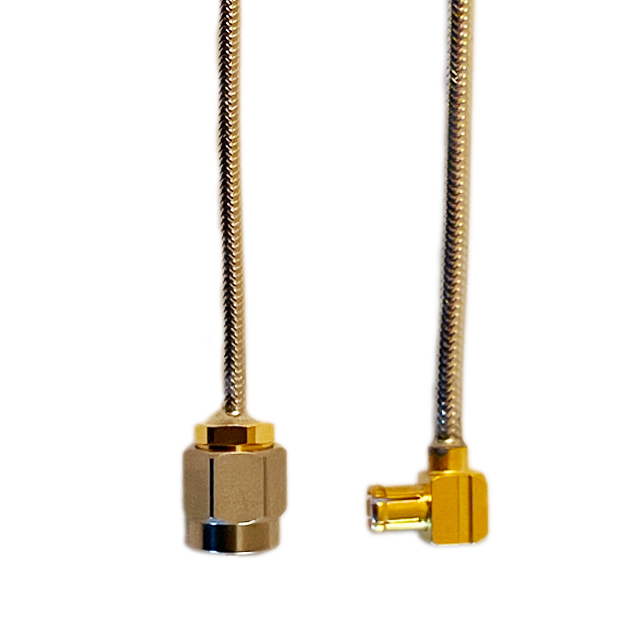

ConductRF FMA28-S1M2-S12	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	SMA Plug	Gray	Male	SMA to MCX	MCX Plug Right Angle	Male	304.8 mm	12 in
ConductRF FMA28-S1S1-S36	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded	36 in	91.44 cm		-55 C	125 °C	50 Ohms	SMA Plug	Gray	Male	SMA to SMA	SMA Plug	Male
ConductRF FMA28-M2M2-S12	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	MCX Plug Right Angle	Gray	Male	MCX to MCX	MCX Plug Right Angle	Male	304.8 mm	12 in

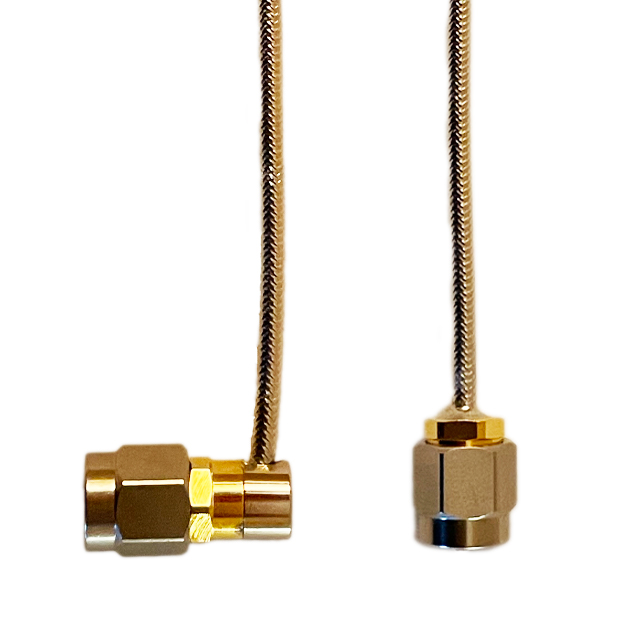

ConductRF FMA28-S1S2-S24	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	SMA Plug	Gray	Male	SMA to SMA	SMA Plug Right Angle	Male	609.6 mm	24 in
ConductRF FMA28-S1PR-S08	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded	8 in	203.2 mm		-55 C	125 °C	50 Ohms	SMA Plug	Gray	Female	SMA to SMP	SMP Jack Right Angle	Male
ConductRF FMA28-M1M1-S06	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	MCX Plug	Gray	Male	MCX to MCX	MCX Plug	Male	152.4 mm	6 "

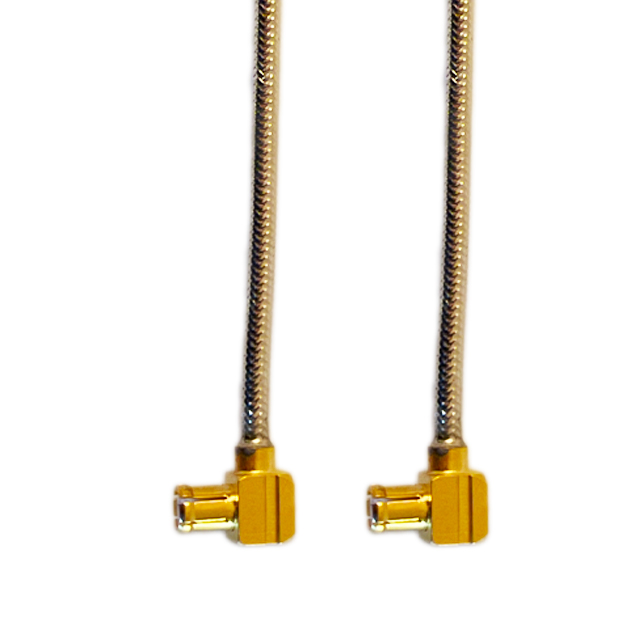

ConductRF FMA28-M2M2-S24	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	MCX Plug Right Angle	Gray	Male	MCX to MCX	MCX Plug Right Angle	Male	609.6 mm	24 in

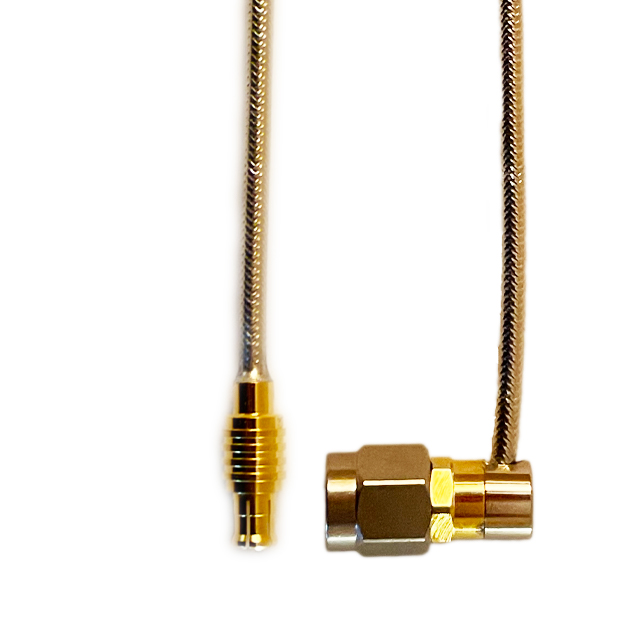

ConductRF FMA28-S2M1-S06	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	SMA Plug Right Angle	Gray	Male	SMA to MCX	MCX Plug Right Angle	Male	152.4 mm	6 "

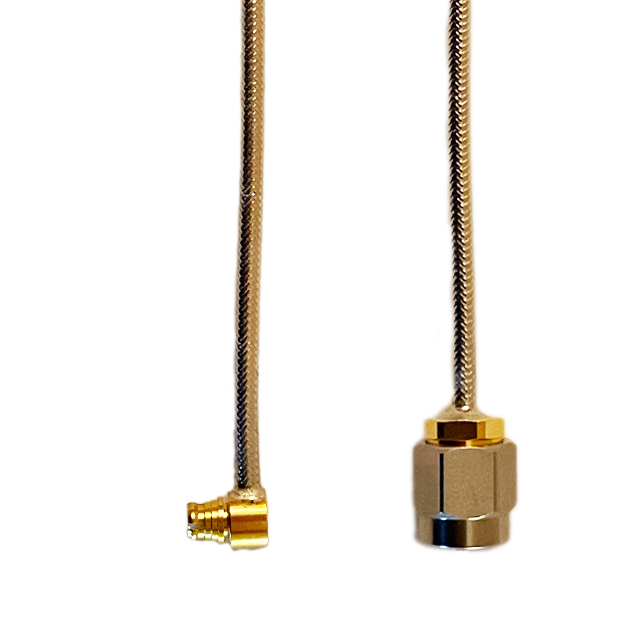

ConductRF FMA28-S1PR-S12	18 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Hand Formable .085	Shielded				-55 C	125 °C	50 Ohms	SMA Plug	Gray	Female	SMA to SMP	SMP Jack Right Angle	Male	304.8 mm	12 in
