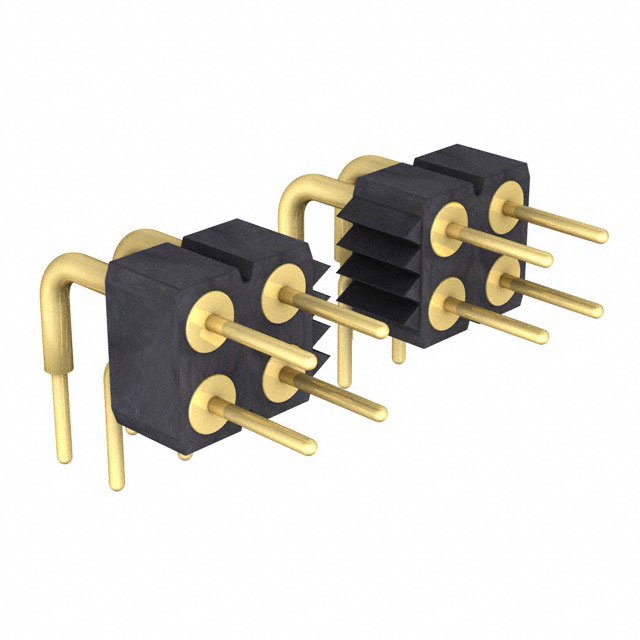

499-10 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER R/A 62POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Shape	Termination	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Color	Mounting Type	Contact Material	Fastening Type	Connector Type	Number of Positions	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
Preci-Dip 499-10-262-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	62	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-228-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	28	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-272-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	72	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-248-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	48	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-210-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	10	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-236-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	36	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-242-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	42	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-240-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	40	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-250-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	50	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
Preci-Dip 499-10-246-10-009101	10 Áin	0.25 çm	Unshrouded	Circular	Solder	Gold	Male Pin	All	0.1 in	2.54 mm	Gold	Black	Right Angle Through Hole	Brass	Push-Pull	Header	46	UL94 V-0	0.2 in	5.08 mm	0.126 "	3.2 mm	150 VDC	0.1 "	2.54 mm	4 mm	0.157 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	2	3 A	-55 C	125 °C
